The **xrnet** R package is an extension of regularized
regression (i.e. ridge regression) that enables the incorporation of
external data that may be informative for the effects of predictors on
an outcome of interest. Let (y) be an n-dimensional observed outcome
vector, (X) be a set of *p* potential predictors observed on the
*n* observations, and (Z) be a set of *q* external
features available for the *p* predictors. Our model builds off
the standard two-level hierarchical regression model,

but allows regularization of both the predictors and the external features, where beta is the vector of coefficients describing the association of each predictor with the outcome and alpha is the vector of coefficients describing the association of each external feature with the predictor coefficients, beta. As an example, assume that the outcome is continuous and that we want to apply a ridge penalty to the predictors and lasso penalty to the external features. We minimize the following objective function (ignoring intercept terms):

Note that our model allows for the predictor coefficients, beta, to shrink towards potentially informative values based on the matrix (Z). In the event the external data is not informative, we can shrink alpha towards zero, returning back to a standard regularized regression. To efficiently fit the model, we rewrite this convex optimization with the variable substitution (gamma = beta - Z * alpha). The problem is then solved as a standard regularized regression in which we allow the penalty value and type (ridge / lasso) to be variable-specific:

This package extends the coordinate descent algorithm of Friedman et
al. 2010 (used in the R package **glmnet**) to allow for
this variable-specific generalization and to fit the model described
above. Currently, we allow for continuous and binary outcomes, but plan
to extend to other outcomes (i.e. survival) in the next release.

`install.packages("xrnet")`

- OS-specific prerequisites
- Install the R package devtools
- Install the
**xrnet**package with the*install_github()*function (optionally install potentially unstable development branch)

```
# Master branch
::install_github("USCbiostats/xrnet")
devtools
# Development branch
::install_github("USCbiostats/xrnet", ref = "development") devtools
```

As an example of how you might use xrnet, we have provided a small set of simulated external data variables (ext), predictors (x), and a continuous outcome variable (y). First, load the package and the example data:

```
library(xrnet)
data(GaussianExample)
```

To fit a linear hierarchical regularized regression model, use the
main `xrnet`

function. At a minimum, you should specify the
predictor matrix `x`

, outcome variable `y`

, and
`family`

(outcome distribution). The `external`

option allows you to incorporate external data in the regularized
regression model. If you do not include external data, a standard
regularized regression model will be fit. By default, a lasso penalty is
applied to both the predictors and the external data.

```
<- xrnet(
xrnet_model x = x_linear,
y = y_linear,
external = ext_linear,
family = "gaussian"
)
```

To modify the regularization terms and penalty path associated with
the predictors or external data, you can use the
`define_penalty`

function. This function allows you to
configure the following regularization attributes:

- Regularization type
- Ridge = 0
- Elastic Net = (0, 1)
- Lasso / Quantile = 1 (additional parameter
`quantile`

used to specify quantile, not currently implemented)

- Penalty path
- Number of penalty values in the full penalty path (default = 20)
- Ratio of min(penalty) / max(penalty)

- User-defined set of penalties

As an example, we may want to apply a ridge penalty to the x
variables and a lasso penalty to the external data variables. In
addition, we may want to have 30 penalty values computed for the
regularization path associated with both x and external. We modify our
model call to `xrnet`

follows.

`penalty_main`

is used to specify the regularization for the x variables`penalty_external`

is used to specify the regularization for the external variables

```
<- xrnet(
xrnet_model x = x_linear,
y = y_linear,
external = ext_linear,
family = "gaussian",
penalty_main = define_penalty(0, num_penalty = 30),
penalty_external = define_penalty(1, num_penalty = 30)
)
```

Helper functions are also available to define the available penalty
types (`define_lasso`

, `define_ridge`

, and
`define_enet`

). The example below exemplifies fitting a
standard ridge regression model with 100 penalty values by using the
`define_ridge`

helper function. As mentioned previously, a
standard regularized regression is fit if no external data is
provided.

```
<- xrnet(
xrnet_model x = x_linear,
y = y_linear,
family = "gaussian",
penalty_main = define_ridge(100)
)
```

In general, we need a method to determine the penalty values that
produce the optimal out-of-sample prediction. We provide a simple
two-dimensional grid search that uses k-fold cross-validation to
determine the optimal values for the penalties. The cross-validation
function `tune_xrnet`

is used as follows.

```
<- tune_xrnet(
cv_xrnet x = x_linear,
y = y_linear,
external = ext_linear,
family = "gaussian",
penalty_main = define_ridge(),
penalty_external = define_lasso()
)
```

To visualize the results of the cross-validation we provide a contour
plot of the mean cross-validation error across the grid of penalties
with the `plot`

function.

`plot(cv_xrnet)`

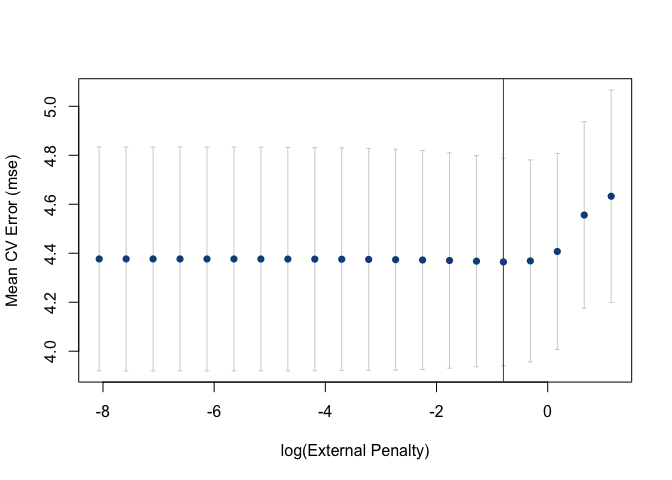

Cross-validation error curves can also be generated with
`plot`

by fixing the value of either the penalty on
`x`

or the external penalty on `external`

. By
default, either penalty defaults the optimal penalty on `x`

or `external`

.

`plot(cv_xrnet, p = "opt")`

The `predict`

function can be used to predict responses
and to obtain the coefficient estimates at the optimal penalty
combination (the default) or any other penalty combination that is
within the penalty path(s). `coef`

is a another help function
that can be used to return the coefficients for a combination of penalty
values as well.

```
<- predict(cv_xrnet, newdata = x_linear)
predy <- coef(cv_xrnet) estimates
```

As an example of using `bigmemory`

with
`xrnet`

, we have a provided a ASCII file,
`x_linear.txt`

, that contains the data for `x`

.
The `bigmemory`

function `read.big.matrix()`

can
be used to create a `big.matrix`

version of this file. The
ASCII file is located under `inst/extdata`

in this repository
and is also included when you install the R package. To access the file
in the R package, use
`system.file("extdata", "x_linear.txt", package = "xrnet")`

as shown in the example below.

`<- bigmemory::read.big.matrix(system.file("extdata", "x_linear.txt", package = "xrnet"), type = "double") x_big `

We can now fit a ridge regression model with the
`big.matrix`

version of the data and verify that we get the
same estimates:

```
<- xrnet(
xrnet_model_big x = x_big,
y = y_linear,
family = "gaussian",
penalty_main = define_ridge(100)
)
all.equal(xrnet_model$beta0, xrnet_model_big$beta0)
#> [1] TRUE
all.equal(xrnet_model$betas, xrnet_model_big$betas)
#> [1] TRUE
all.equal(xrnet_model$alphas, xrnet_model_big$alphas)
#> [1] TRUE
```

To report a bug, ask a question, or propose a feature, create a new issue here. This project is released with the following Contributor Code of Conduct. If you would like to contribute, please abide by its terms.

Supported by National Cancer Institute Grant #1P01CA196596.
