shorts

DOI R-CMD-check CRAN status

{shorts} is an R package aimed for the analysis of the un-resisted and resisted short sprints (<6sec; without deceleration), creation of acceleration-velocity profiles (AVP), force-velocity profiles (FVP), and optimization profiles using variety of sprint traces (e.g., time-velocity from laser/radar gun, distance-time from timing gates/photocells). It represents a simple to use tool for researcher and practitioners interested in modeling short sprints performance.

Installation

# Install from CRAN
install.packages("shorts")

# Or the development version from GitHub
# install.packages("remotes")
remotes::install_github("mladenjovanovic/shorts")

Examples

{shorts} comes with multiple sample data sets. Let’s load split_times and radar_gun_data with N=5 athletes:

library(shorts)
library(tidyverse)
library(knitr)

data("split_times", "radar_gun_data")

Profiling using split times

{shorts} package utilizes modified mono-exponential functions to model short sprint performance. To model sprint performance using split times, distance will be used as predictor and time as target. Since split_times dataset contains data for multiple athletes, let’s extract only one athlete and model it using shorts::model_timing_gates() function.

kimberley_data <- filter(split_times, athlete == "Kimberley")

kable(kimberley_data)
athlete bodyweight distance time
Kimberley 55 5 1.158
Kimberley 55 10 1.893
Kimberley 55 15 2.541
Kimberley 55 20 3.149
Kimberley 55 30 4.313
Kimberley 55 40 5.444

Parameters estimated using mono-exponential equation are maximal sprinting speed (\(MSS\)), and maximal acceleration (MAC). Additional parameters computed from \(MSS\) and \(MAC\) are relative acceleration (\(TAU\)) and maximal relative power (\(PMAX\)) (which is calculated as \(MAC \cdot MSS\div4\)).

kimberley_profile <- shorts::model_timing_gates(
  distance = kimberley_data$distance,
  time = kimberley_data$time
)

kimberley_profile
#> Estimated model parameters
#> --------------------------
#>        MSS        MAC        TAU       PMAX
#>  8.5911431 10.5889817  0.8113285 22.7428642
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>    0.999655312   -0.003093343   -0.538602775   -0.052934568   -4.571206233
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>    0.026991611    0.857148665    0.052934568    4.571206233    0.027788752
#>      RMSE_perc            MAE       MAE_perc
#>    1.939218713    0.023333409    1.192632747

summary(kimberley_profile)
#>
#> Formula: time ~ predict_time_at_distance(distance, MSS, MAC)
#>
#> Parameters:
#>     Estimate Std. Error t value Pr(>|t|)
#> MSS   8.5911     0.1225   70.13 2.48e-07 ***
#> MAC  10.5890     0.4599   23.03 2.11e-05 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.03403 on 4 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 1.49e-08

coef(kimberley_profile)
#>       MSS       MAC
#>  8.591143 10.588982

confint(kimberley_profile, level = 0.95)
#>         2.5%     97.5%
#> MSS 8.273337  8.963098
#> MAC 9.421593 12.022126

To return the predicted/fitted values (in this case time variable), use predict() function:

predict(kimberley_profile)
#> [1] 1.210935 1.897021 2.521028 3.122008 4.299243 5.466324

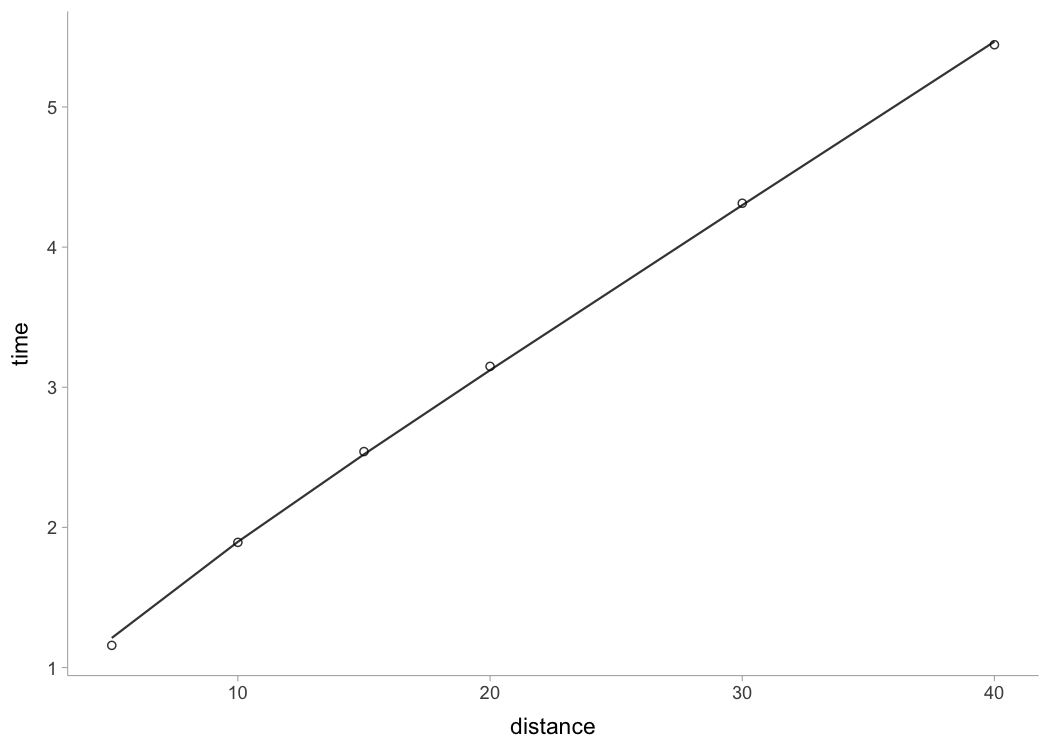

To create a simple plot use S3 plot() method. There are four type options: "model" (default), "kinematics-time", "kinematics-distance", or "residuals":

plot(kimberley_profile) +
  theme_bw()

plot(kimberley_profile, "kinematics-time") +
  theme_bw()

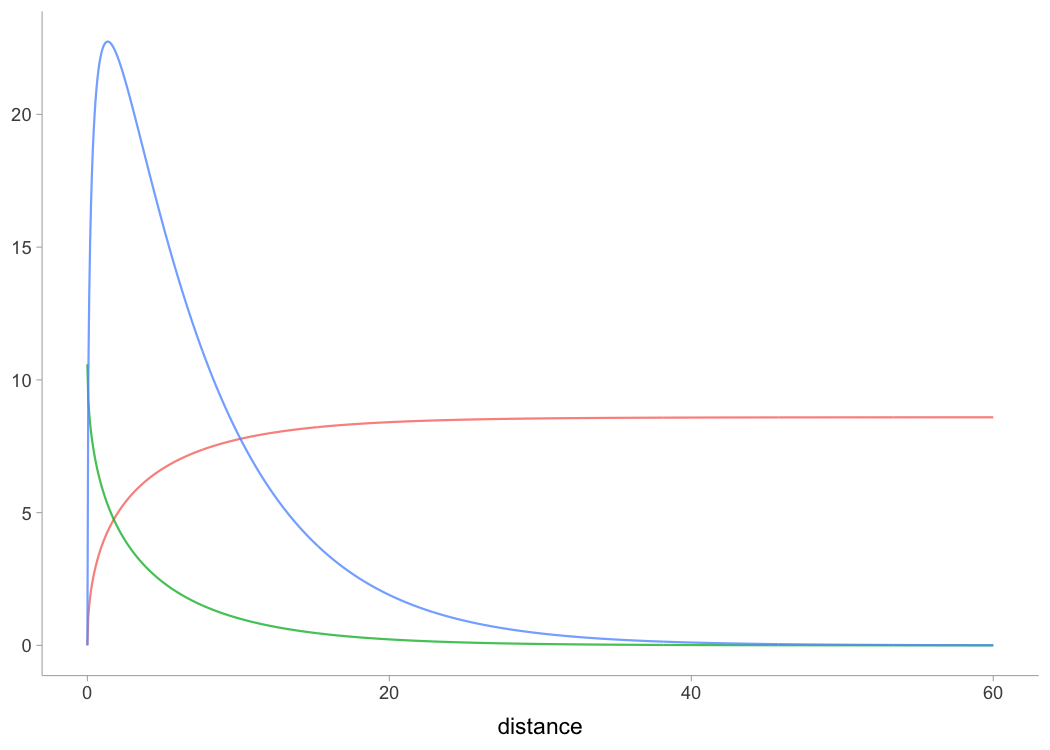

plot(kimberley_profile, "kinematics-distance") +
  theme_bw()

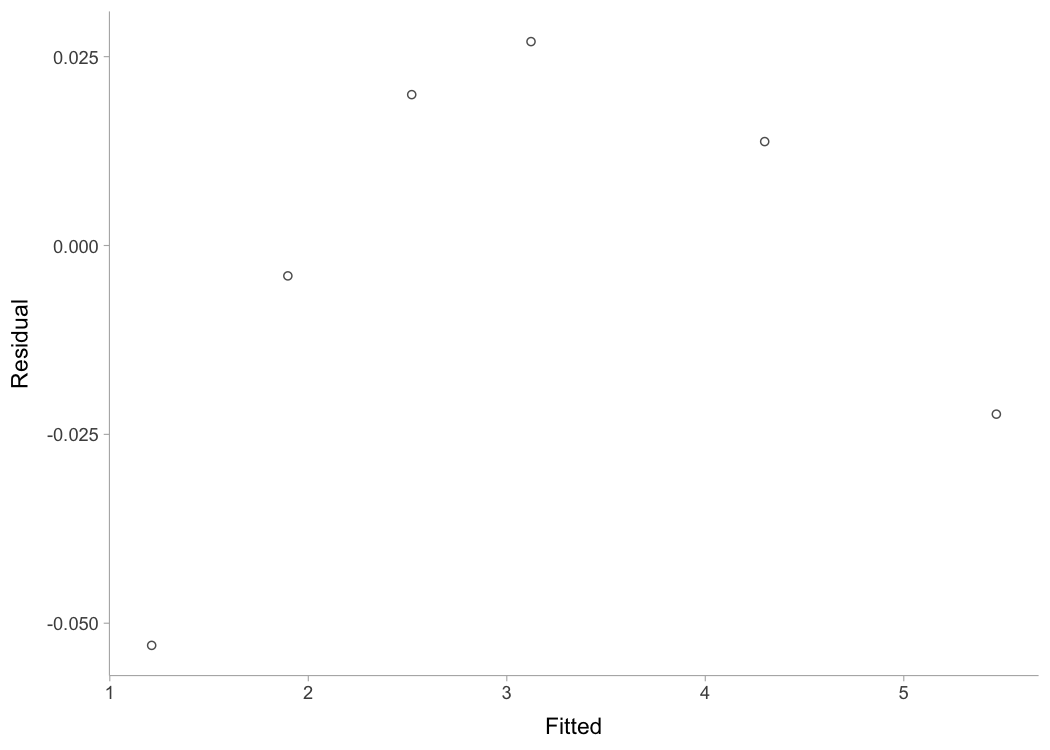

plot(kimberley_profile, "residuals") +
  theme_bw()

If you are interested in calculating average split velocity, use shorts::format_splits()

kable(shorts::format_splits(
  distance = kimberley_data$distance,
  time = kimberley_data$time
))
split split_distance_start split_distance_stop split_distance split_time_start split_time_stop split_time split_mean_velocity split_mean_acceleration
1 0 5 5 0 1.158 1.158 4.317789…. 3.728660….
2 5 10 5 1.158 1.893 0.735 6.802721…. 3.380859….
3 10 15 5 1.893 2.541 0.648 7.716049…. 1.409457….
4 15 20 5 2.541 3.149 0.608 8.223684…. 0.834925….
5 20 30 10 3.149 4.313 1.164 8.591065…. 0.315619….
6 30 40 10 4.313 5.444 1.131 8.841732…. 0.221633….

To plot predicted velocity, acceleration, air resistance, force, and power over distance, use shorts:predict_XXX(). Please note that to calculate force, air resistance, and power, we need Kimberley’s bodymass and height (as well as other characteristics such as air pressure, temperature and wind - see get_air_resistance() function).

kimberley_bodymass <- 60 # in kilograms
kimberley_bodyheight <- 1.7 # in meters

kimberley_pred <- tibble(
  distance = seq(0, 40, length.out = 1000),

  # Velocity
  pred_velocity = shorts::predict_velocity_at_distance(
    distance,
    kimberley_profile$parameters$MSS,
    kimberley_profile$parameters$TAU
  ),

  # Acceleration
  pred_acceleration = shorts::predict_acceleration_at_distance(
    distance,
    kimberley_profile$parameters$MSS,
    kimberley_profile$parameters$TAU
  ),

  # Air resistance
  pred_air_resistance = shorts::predict_air_resistance_at_distance(
    distance,
    kimberley_profile$parameters$MSS,
    kimberley_profile$parameters$TAU,
    bodymass = kimberley_bodymass,
    bodyheight = kimberley_bodyheight
  ),

  # Force
  pred_force = shorts::predict_force_at_distance(
    distance,
    kimberley_profile$parameters$MSS,
    kimberley_profile$parameters$TAU,
    bodymass = kimberley_bodymass,
    bodyheight = kimberley_bodyheight
  ),

  # Power
  pred_power = shorts::predict_power_at_distance(
    distance,
    kimberley_profile$parameters$MSS,
    kimberley_profile$parameters$TAU,
    bodymass = kimberley_bodymass,
    bodyheight = kimberley_bodyheight
  ),
)

# Convert to long
kimberley_pred <- gather(kimberley_pred, "metric", "value", -distance)

ggplot(kimberley_pred, aes(x = distance, y = value)) +
  theme_bw() +
  geom_line() +
  facet_wrap(~metric, scales = "free_y") +
  xlab("Distance (m)") +
  ylab(NULL)

To do prediction simpler, use shorts::predict_kinematics() function. This will provide kinetics and kinematics for 0-6 \(s\) sprint using 100 \(Hz\).

predicted_kinematics <- predict_kinematics(
  kimberley_profile,
  bodymass = kimberley_bodymass,
  bodyheight = kimberley_bodyheight
)

kable(head(predicted_kinematics))
time distance velocity acceleration bodymass inertia resistance air_resistance horizontal_force horizontal_force_relative vertical_force resultant_force resultant_force_relative power power_relative work average_power average_power_relative RF force_angle
0.00 0.0000000 0.0000000 10.588982 60 0 0 0.0000000 635.3389 10.588982 588.6 866.0863 14.43477 0.00000 0.000000 0.0000000 NaN NaN 0.7335746 42.81309
0.01 0.0005273 0.1052399 10.459269 60 0 0 0.0026620 627.5588 10.459313 588.6 860.3952 14.33992 66.04424 1.100737 0.3322639 33.22639 0.5537732 0.7293843 43.16520
0.02 0.0021005 0.2091907 10.331145 60 0 0 0.0105181 619.8792 10.331320 588.6 854.8100 14.24683 129.67294 2.161216 1.3128332 65.64166 1.0940276 0.7251660 43.51734
0.03 0.0047068 0.3118680 10.204590 60 0 0 0.0233774 612.2988 10.204980 588.6 849.3290 14.15548 190.95642 3.182607 2.9179055 97.26352 1.6210586 0.7209206 43.86946
0.04 0.0083337 0.4132876 10.079586 60 0 0 0.0410543 604.8162 10.080270 588.6 843.9506 14.06584 249.96305 4.166051 5.1243723 128.10931 2.1351551 0.7166488 44.22151
0.05 0.0129685 0.5134649 9.956112 60 0 0 0.0633688 597.4301 9.957169 588.6 838.6732 13.97789 306.75937 5.112656 7.9097991 158.19598 2.6365997 0.7123515 44.57343

To get model residuals, use residuals() function:

residuals(kimberley_profile)
#> [1] -0.052934568 -0.004021215  0.019971704  0.026991611  0.013756880
#> [6] -0.022324473

Package {shorts} comes with find_XXX() family of functions that allow finding peak power and it’s location, as well as critical distance over which velocity, acceleration, or power drops below certain threshold:

# Peak power and location
shorts::find_peak_power_distance(
  MSS = kimberley_profile$parameters$MSS,
  MAC = kimberley_profile$parameters$MAC,
  bodymass = kimberley_bodymass,
  bodyheight = kimberley_bodyheight
)
#> $peak_power
#> [1] 1384.248
#>
#> $distance
#> [1] 1.424183

# Distance over which power is over 80%
shorts::find_power_critical_distance(
  MSS = kimberley_profile$parameters$MSS,
  MAC = kimberley_profile$parameters$MAC,
  bodymass = kimberley_bodymass,
  bodyheight = kimberley_bodyheight,
  percent = 0.8
)
#> $lower
#> [1] 0.3421958
#>
#> $upper
#> [1] 4.26947

# Distance over which acceleration is under 50%
shorts::find_acceleration_critical_distance(
  MSS = kimberley_profile$parameters$MSS,
  MAC = kimberley_profile$parameters$MAC,
  percent = 0.5
)
#> [1] 1.34628

# Distance over which velocity is over 95%
shorts::find_velocity_critical_distance(
  MSS = kimberley_profile$parameters$MSS,
  MAC = kimberley_profile$parameters$MAC,
  percent = 0.95
)
#> [1] 14.25923

Profiling using radar gun data

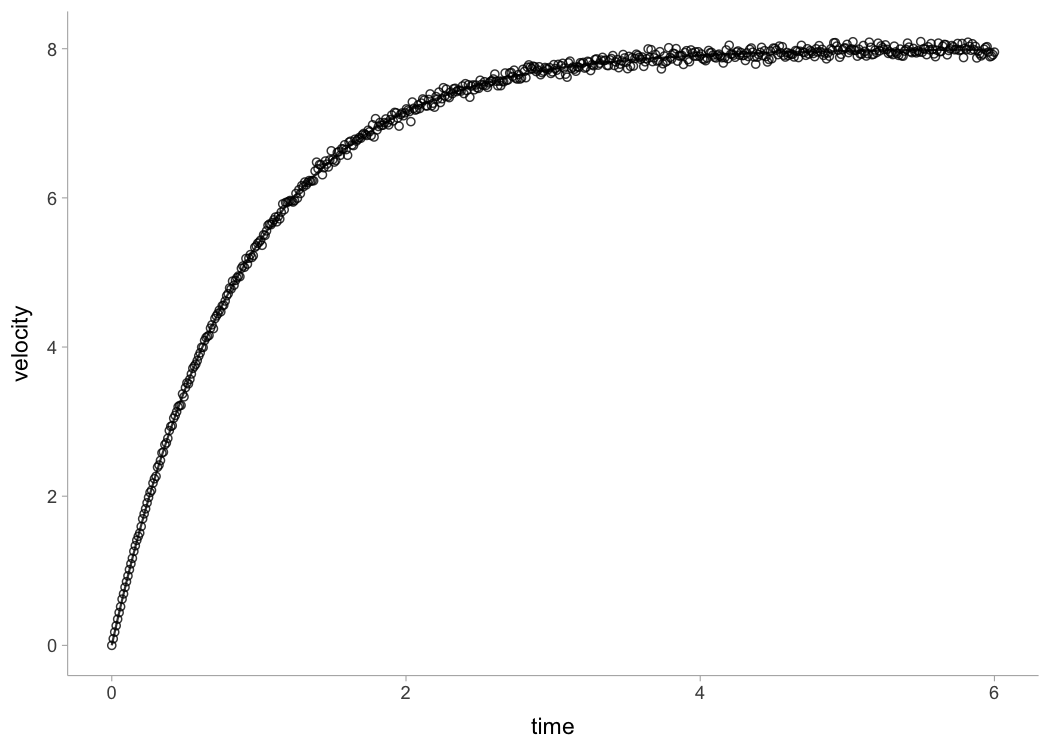

The radar gun data is modeled using measured velocity as target variable and time as predictor. Individual analysis is performed using shorts::model_radar_gun() function or shorts::model_laser_gun() (they are aliases). Let’s do analysis for Jim:

jim_data <- filter(radar_gun_data, athlete == "Jim")

jim_profile <- shorts::model_radar_gun(
  time = jim_data$time,
  velocity = jim_data$velocity
)

jim_profile
#> Estimated model parameters
#> --------------------------
#>        MSS        MAC        TAU       PMAX
#>  7.9980115  8.9987070  0.8887956 17.9929403
#>
#> Estimated model corrections
#> --------------------------
#>            TC
#> -0.0001104572
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   9.992441e-01  -2.481182e-08           -Inf  -1.640451e-01           -Inf
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   1.511234e-01   2.332511e+00   1.640451e-01            Inf   5.050254e-02
#>      RMSE_perc            MAE       MAE_perc
#>            Inf   3.927236e-02            Inf

summary(jim_profile)
#>
#> Formula: velocity ~ predict_velocity_at_time(time - TC, MSS, MAC)
#>
#> Parameters:
#>       Estimate Std. Error t value Pr(>|t|)
#> MSS  7.9980115  0.0031934 2504.55   <2e-16 ***
#> MAC  8.9987070  0.0199701  450.61   <2e-16 ***
#> TC  -0.0001105  0.0012283   -0.09    0.928
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.05063 on 597 degrees of freedom
#>
#> Number of iterations to convergence: 4
#> Achieved convergence tolerance: 1.49e-08

confint(jim_profile)
#>             2.5%       97.5%
#> MSS  7.991747860 8.004286924
#> MAC  8.959592160 9.037967809
#> TC  -0.002530815 0.002291737

plot(jim_profile) +
  theme_bw()

In addition to \(MSS\) and \(MAC\) parameters, shorts::model_radar_gun() function also estimated time-correction (\(TC\)) parameter.

Rather than estimating \(MSS\), shorts::model_radar_gun() function allows you to utilize peak velocity observed in the data as \(MSS\). This is done by setting the use_observed_MSS parameter to TRUE:

jim_profile <- shorts::model_radar_gun(
  time = jim_data$time,
  velocity = jim_data$velocity,
  use_observed_MSS = TRUE
)

jim_profile
#> Estimated model parameters
#> --------------------------
#>        MSS        MAC        TAU       PMAX
#>  8.0950000  8.6782211  0.9327949 17.5625500
#>
#> Estimated model corrections
#> --------------------------
#>          TC
#> -0.01117683
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>     0.99875693    -0.03881082           -Inf    -0.22869200           -Inf
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>     0.18253953     2.81740287     0.22869200            Inf     0.07984600
#>      RMSE_perc            MAE       MAE_perc
#>            Inf     0.06431872            Inf

summary(jim_profile)
#>
#> Formula: velocity ~ predict_velocity_at_time(time - TC, MSS, MAC)
#>
#> Parameters:
#>      Estimate Std. Error  t value Pr(>|t|)
#> MSS  8.095000   0.005209 1554.099  < 2e-16 ***
#> MAC  8.678221   0.030174  287.601  < 2e-16 ***
#> TC  -0.011177   0.002025   -5.519 5.09e-08 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.08005 on 597 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 1.49e-08

Profiling using tether devices

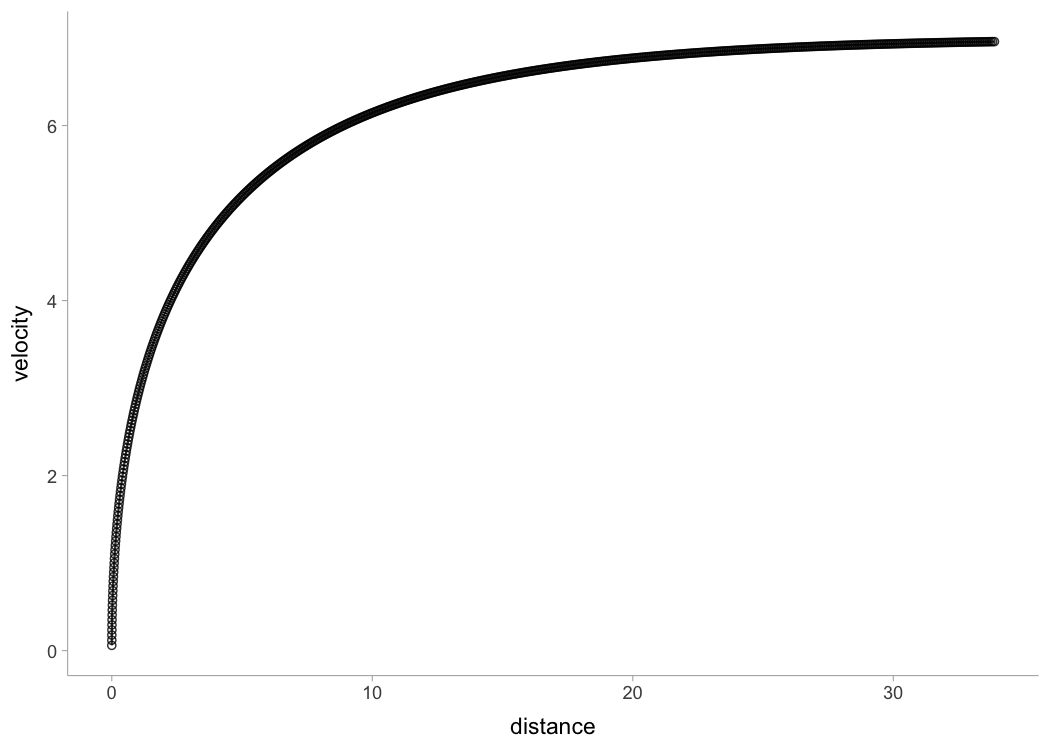

Some tether devices provide data out in a velocity-at-distance format. In this case, velocity is the outcome variable and distance is the predictor. To estimate sprint profiles from tether data, use shorts::model_tether() function.

# This creates sprint trace
tether_df <- shorts::create_sprint_trace(
  MSS = 7, MAC = 6,
  time = seq(0.01, 6, by = 0.01))

m1 <- model_tether(
  distance = tether_df$distance,
  velocity = tether_df$velocity)

m1
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  7.000000  6.000000  1.166667 10.500000
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   1.000000e+00   4.638882e-16   8.491813e-13  -3.808065e-14  -3.200666e-11
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   2.984279e-13   4.995146e-10   2.984279e-13   4.995146e-10   1.259855e-14
#>      RMSE_perc            MAE       MAE_perc
#>   2.044889e-11   1.438294e-15   9.813336e-13

plot(m1)

Setting use_observed_MSS parameter to TRUE in the shorts::model_tether() function also allows you to use observed peak velocity as \(MSS\).

In the case when distance is not centered at zero, use shorts::model_tether_DC() which also estimated the distance correction (\(DC\)) parameter, serving as model intercept (for more info see Using corrections section):

# This creates sprint trace
tether_df <- shorts::create_sprint_trace(
  MSS = 7, MAC = 6,
  time = seq(0.001, 6, by = 0.01),
  # Add distance shift
  DC = 5)

m1 <- model_tether_DC(
  distance = tether_df$distance,
  velocity = tether_df$velocity)

m1
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  7.000000  6.000000  1.166667 10.500000
#>
#> Estimated model corrections
#> --------------------------
#> DC
#>  5
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   1.000000e+00   6.483757e-11   8.098034e-07  -1.517186e-11  -2.897114e-10
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   2.873803e-08   4.791725e-04   2.873803e-08   4.791725e-04   1.181241e-09
#>      RMSE_perc            MAE       MAE_perc
#>   1.956287e-05   7.412052e-11   8.099718e-07

plot(m1)

Embedded (i.e., in-situ) Profiling

With the modern technologies like GPS and LPS, session acceleration and velocity can be tracked continuously. This provides an opportunity to estimate short sprint profiles from in-situ, without the need for explicit testing (assuming the maximal effort was performed). The analysis is based on the theoretical model where acceleration and velocity have linear relationship (i.e., mono-exponential model applied thus far). The time frame of the analysis can vary from single drills (e.g., sprint drills), session, week, to multiple weeks.

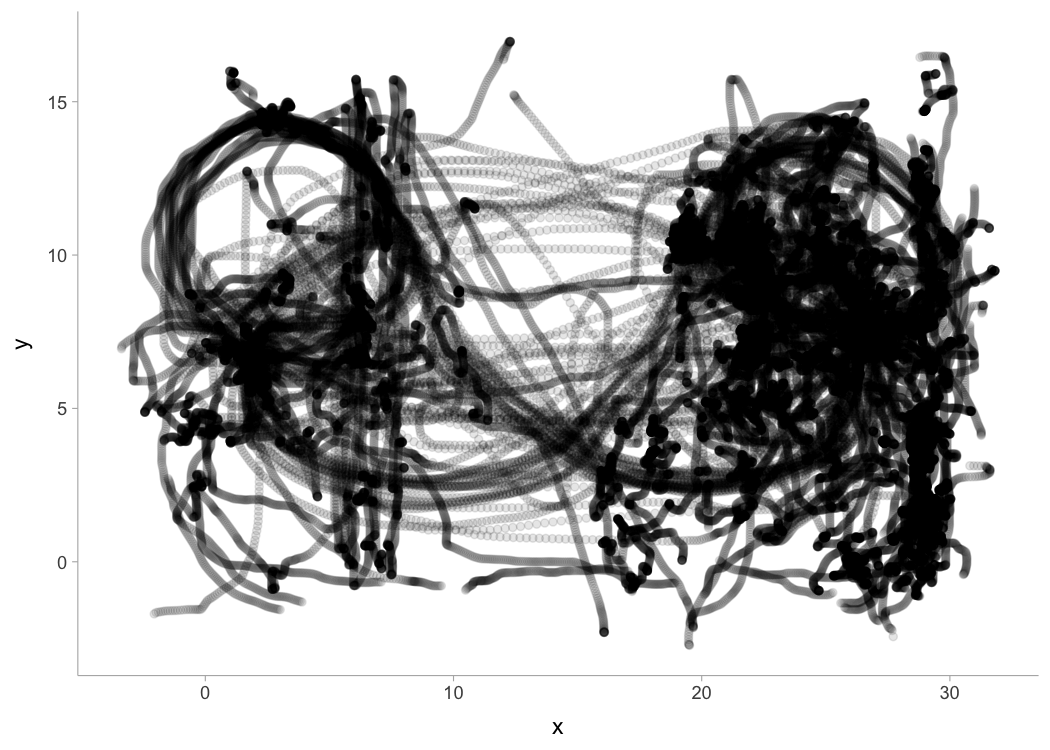

Here is an example of the data collected during one basketball session for a single person. Duration was approx. 90 min with 20 \(Hz\) sampling rate. This is the positional data:

data("LPS_session")

LPS_session %>%
  ggplot(aes(x = x, y = y)) +
  theme_bw() +
  geom_point(alpha = 0.1)

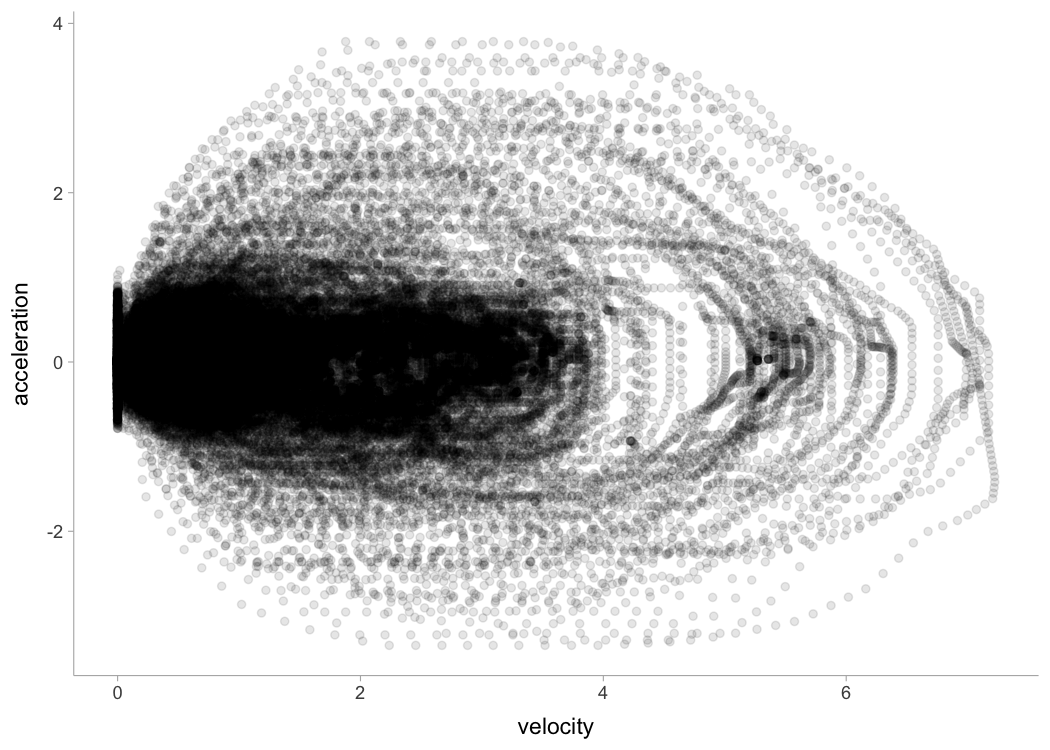

The next figure plots instant acceleration and velocity:

LPS_session %>%
  ggplot(aes(x = velocity, y = acceleration)) +
  theme_bw() +
  geom_point(alpha = 0.1)

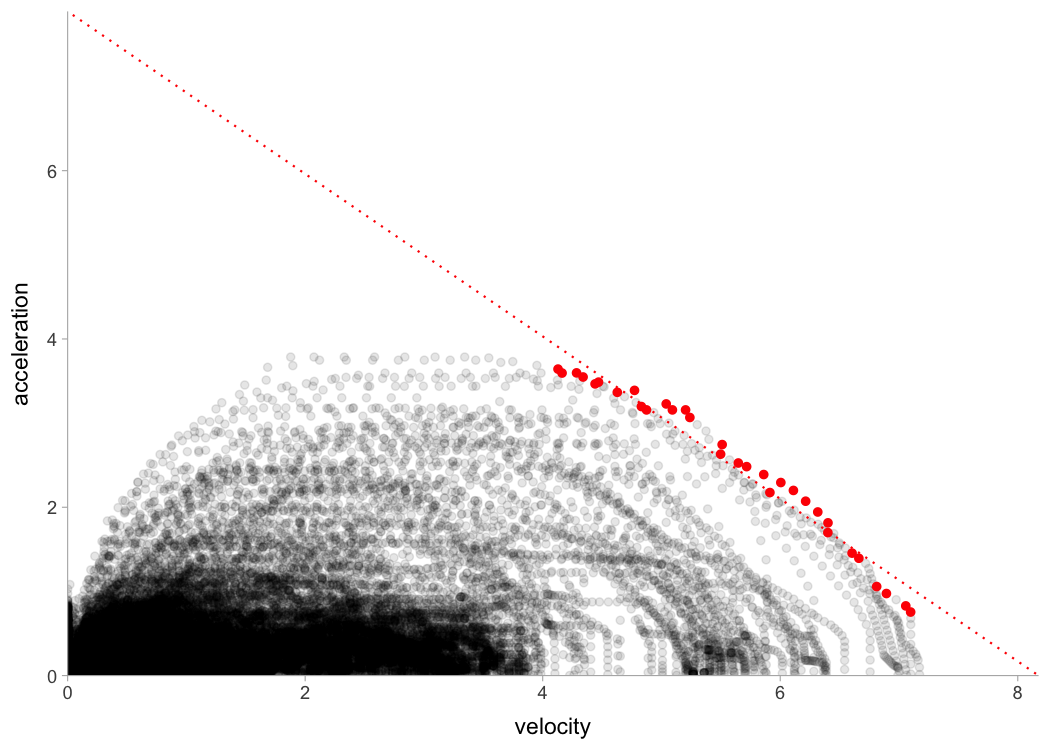

To estimate embedded short sprint profile, we need to filter out positive acceleration and velocities over 3 \(ms{-1}\) (default), then filter few top acceleration observations per velocity bracket (for more information please see Clavel et al. (2023)). Here is the graphical representation:

embedded_model <- model_in_situ(
  LPS_session$velocity,
  LPS_session$acceleration,
  velocity_threshold = 4)

LPS_session %>%
  filter(acceleration > 0) %>%
  ggplot(aes(x = velocity, y = acceleration)) +
  theme_bw() +
  geom_point(alpha = 0.1) +
  geom_point(
    data = embedded_model$data,
    color = "red"
  ) +
  geom_abline(
    intercept = coef(embedded_model$model)[[1]],
    slope = coef(embedded_model$model)[[2]],
    linetype = "dotted", color = "red") +
  scale_x_continuous(expand = c(0, 0), limits = c(0,  embedded_model$parameters$MSS)) +
  scale_y_continuous(expand = c(0, 0), limits = c(0, embedded_model$parameters$MAC))

Force-Velocity Profiling

To estimate Force-Velocity Profile (FVP) using approach by Samozino et al. (2016, 2022) use shorts::create_FVP():

kimberley_fv <- shorts::create_FVP(
  MSS = kimberley_profile$parameters$MSS,
  MAC = kimberley_profile$parameters$MAC,
  # These are needed to estimate air resistance
  bodymass = kimberley_bodymass,
  bodyheight = kimberley_bodyheight
)

kimberley_fv
#> $bodymass
#> [1] 60
#>
#> $F0
#> [1] 635.3389
#>
#> $F0_rel
#> [1] 10.58898
#>
#> $V0
#> [1] 8.845438
#>
#> $Pmax
#> [1] 1404.963
#>
#> $Pmax_rel
#> [1] 23.41605
#>
#> $FV_slope
#> [1] -1.197112

To convert back to Acceleration-Velocity Profile (AVP), use:

kimberley_avp <- shorts::convert_FVP(
  F0 = kimberley_fv$F0,
  V0 = kimberley_fv$V0,
  bodymass = kimberley_bodymass,
  bodyheight = kimberley_bodyheight
)

kimberley_avp
#> $MSS
#> [1] 8.591143
#>
#> $MAC
#> [1] 10.58898

Using external load

{shorts} package also allows utilizing external load in estimating FVP, as well as using FVP parameters to predict kinematic and kinetic variables. External load is represented either with additional inertia (i.e., weight vest), horizontal resistance (i.e., tether device that create additional resistance or help, or a hill sprinting), or both (i.e., a sled, which have both inertia and resistance due to friction forces). One might also consider head and tail wind as a form of resistance (or assistance).

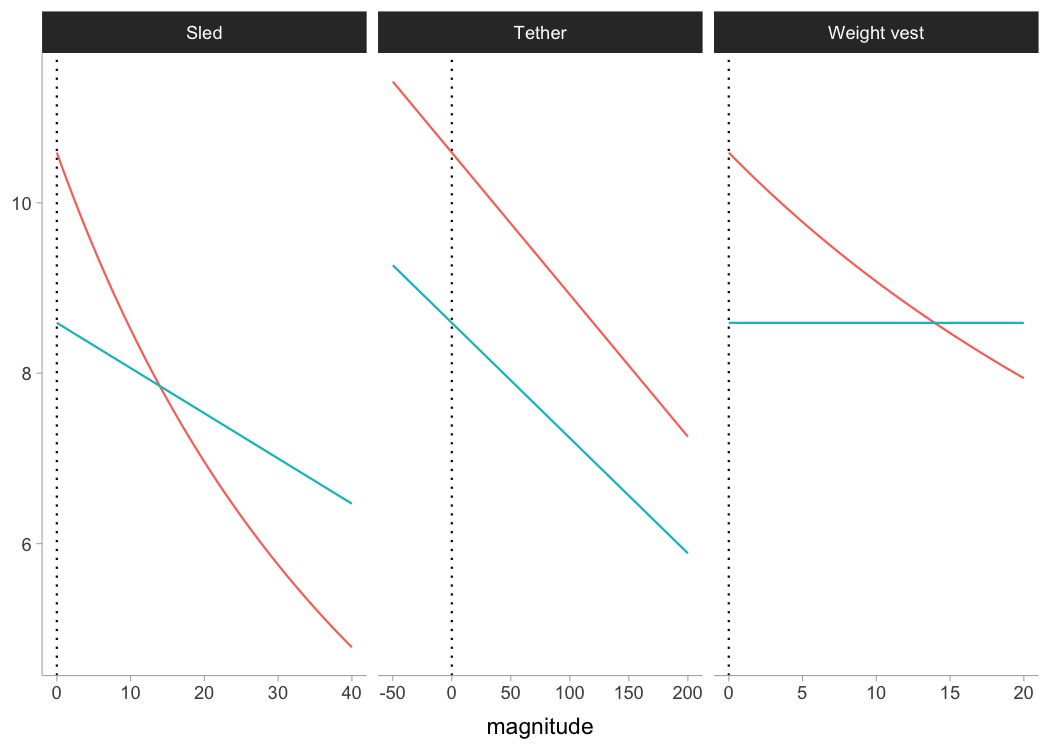

Let’s see how theoretical model, assuming FVP is determinant of performance (which I do not agree with, BTW), predicts changes in sprint characteristics (i.e., \(MSS\) and \(MAC\)) under different external load conditions and magnitudes using Kimberley’s estimated FVP:

loads_df <- rbind(
  tibble(type = "Weight vest", magnitude = seq(0, 20, length.out = 100), inertia = magnitude, resistance = 0),
  tibble(type = "Tether", magnitude = seq(-50, 200, length.out = 100), inertia = 0, resistance = magnitude),
  tibble(type = "Sled", magnitude = seq(0, 40, length.out = 100), inertia = magnitude, resistance = magnitude * 9.81 * 0.4)
) %>%
  mutate(
    data.frame(shorts::convert_FVP(
      F0 = kimberley_fv$F0,
      V0 = kimberley_fv$V0,
      bodymass = kimberley_bodymass,
      bodyheight = kimberley_bodyheight,
      inertia = inertia,
      resistance = resistance
    ))
  )

loads_df %>%
  pivot_longer(cols = c(MSS, MAC), names_to = "parameter") %>%
  ggplot(aes(x = magnitude, y = value, color = parameter)) +
  theme_bw() +
  geom_vline(xintercept = 0, linetype = "dotted") +
  geom_line() +
  facet_wrap(~type, scales = "free_x") +
  ylab(NULL)

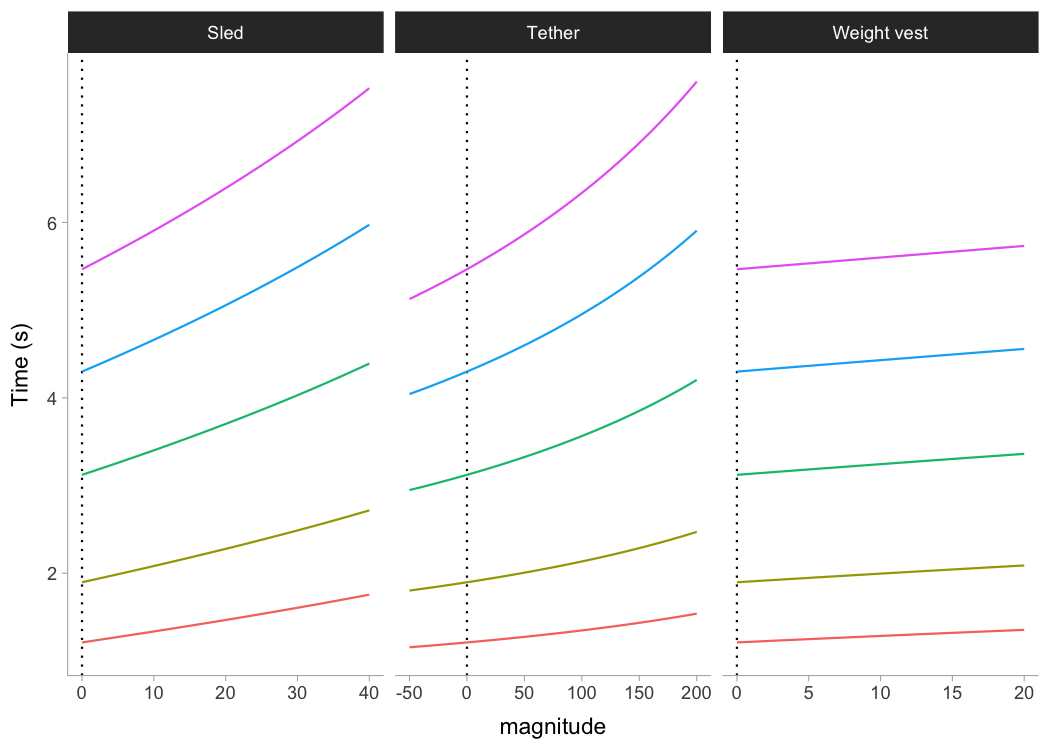

Following figure depicts the effect on split times under different load types and magnitudes, assuming FVP to be determinant of performance (i.e., causal mechanism):

dist_df <- expand_grid(
  loads_df,
  distance = c(5, 10, 20, 30, 40)
) %>%
  mutate(
    time = predict_time_at_distance(distance, MSS, MAC),
    distance = factor(
      paste0(distance, "m"), levels = c("5m", "10m", "20m", "30m", "40m"))
  )

dist_df %>%
  ggplot(aes(x = magnitude, y = time, color = distance)) +
  theme_bw() +
  geom_vline(xintercept = 0, linetype = "dotted") +
  geom_line() +
  facet_wrap(~type, scales = "free_x") +
  ylab("Time (s)")

One can use external resistance when predicting force or power:

shorts::predict_force_at_time(
  time = 0.5,
  MSS = 9,
  MAC = 7,
  bodymass = 75,
  inertia = 20,
  resistance = 50)
#> [1] 503.0126

shorts::predict_power_at_time(
  time = 0.5,
  MSS = 9,
  MAC = 7,
  bodymass = 75,
  inertia = 20,
  resistance = 50)
#> [1] 1458.593

shorts::predict_time_at_distance_FV(
  distance = 10,
  F0 = 750,
  V0 = 8,
  bodymass = 75,
  inertia = 20,
  resistance = 50)
#> [1] 2.259444

External resistances can also be utilized in the Optimization functions, covered later.

Using corrections

You have probably noticed that estimated \(MSS\) and \(TAU\) were a bit too high for splits data. Biased estimates are due to differences in starting positions and timing triggering methods for certain measurement approaches (e.g. starting behind first timing gate, or allowing for body rocking).

Here I will provide quick summary (see more in Jovanović M., 2023). Often, this bias in estimates is dealt with by using heuristic rule of thumb of adding time correction (time_correction) to split times (e.g. from 0.3-0.5 \(sec\); see more in Haugen et al., 2012). To do this, just add time correction to time split:

kimberley_profile_fixed_TC <- shorts::model_timing_gates(
  distance = kimberley_data$distance,
  time = kimberley_data$time + 0.3
)

kimberley_profile_fixed_TC
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  9.127769  6.625731  1.377624 15.119536
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>    0.999971375    0.001009227    0.125589837   -0.007689947   -0.222961644
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>    0.016398637    1.124735020    0.016398637    1.124735020    0.008139867
#>      RMSE_perc            MAE       MAE_perc
#>    0.477039255    0.006393853    0.285701750

summary(kimberley_profile_fixed_TC)
#>
#> Formula: time ~ predict_time_at_distance(distance, MSS, MAC)
#>
#> Parameters:
#>     Estimate Std. Error t value Pr(>|t|)
#> MSS  9.12777    0.05355   170.4 7.11e-09 ***
#> MAC  6.62573    0.06569   100.9 5.79e-08 ***
#> ---
#> Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
#>
#> Residual standard error: 0.009969 on 4 degrees of freedom
#>
#> Number of iterations to convergence: 5
#> Achieved convergence tolerance: 1.49e-08

coef(kimberley_profile_fixed_TC)
#>      MSS      MAC
#> 9.127769 6.625731

Instead of providing for TC, this parameter can be estimated using shorts::model_timing_gates_TC().

kimberley_profile_TC <- shorts::model_timing_gates_TC(
  distance = kimberley_data$distance,
  time = kimberley_data$time
)

kimberley_profile_TC
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  8.974835  7.267917  1.234857 16.307090
#>
#> Estimated model corrections
#> --------------------------
#>         TC
#> -0.2346537
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   9.999997e-01   1.854313e-11   1.816275e-03  -1.180734e-03  -6.237372e-02
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   1.209466e-03   5.974772e-02   1.209466e-03   6.237372e-02   7.983565e-04
#>      RMSE_perc            MAE       MAE_perc
#>   3.748224e-02   6.586034e-04   2.823532e-02

Instead of estimating TC, {shorts} package features a method of estimating flying start distance (FD):

kimberley_profile_FD <- shorts::model_timing_gates_FD(
  distance = kimberley_data$distance,
  time = kimberley_data$time
)

kimberley_profile_FD
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  9.002681  6.991283  1.287701 15.735073
#>
#> Estimated model corrections
#> --------------------------
#>        FD
#> 0.3015635
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   1.000000e+00   6.446653e-07   3.182633e-04  -4.036158e-04  -1.281727e-02
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   4.557031e-04   1.056580e-02   4.557031e-04   1.281727e-02   2.758661e-04
#>      RMSE_perc            MAE       MAE_perc
#>   8.402638e-03   2.367538e-04   7.829105e-03

If you want to use fixed FD parameter (e.g., when you know what is the flying distance), in a similar vein of using fixed TC correction, use:

kimberley_profile_fixed_FD <- shorts::model_timing_gates_FD(
  distance = kimberley_data$distance,
  time = kimberley_data$time,
  FD = 0.5
)

kimberley_profile_fixed_FD
#> Estimated model parameters
#> --------------------------
#>       MSS       MAC       TAU      PMAX
#>  9.178464  6.231413  1.472935 14.298700
#>
#> Estimated model corrections
#> --------------------------
#>  FD
#> 0.5
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>    0.999973897    0.001247560    0.177401418   -0.007903690   -0.250990469
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>    0.015461986    1.335231979    0.015461986    1.335231979    0.007939415
#>      RMSE_perc            MAE       MAE_perc
#>    0.564926522    0.006718969    0.349905002

There are other corrections involving time correction (TC), distance correction (DC), flying distance correction (FD), and time and distance corrections (TC+DC). They are implemented in the model_timing_gates_ and model_time_distance_ functions. The difference between the model_timing_gates_ and model_time_distance_ is in reversing predictor and outcome variables.

Cross-Validation (CV)

model_ family of functions come with CV feature that is performed by setting the function parameter CV to desired number of folds. This feature is very useful for checking model parameters robustness and model predictions on unseen data. Let’s use Kimberley again, but this time perform special kind of CV, leave-one-out-cross-validation (LOOCV):

kimberley_profile_CV <- shorts::model_timing_gates(
  distance = kimberley_data$distance,
  time = kimberley_data$time,
  # To perform LOOCV number of folds is equal to
  # number of observations
  CV = nrow(kimberley_data)
)

kimberley_profile_CV
#> Estimated model parameters
#> --------------------------
#>        MSS        MAC        TAU       PMAX
#>  8.5911431 10.5889817  0.8113285 22.7428642
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>    0.999655312   -0.003093343   -0.538602775   -0.052934568   -4.571206233
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>    0.026991611    0.857148665    0.052934568    4.571206233    0.027788752
#>      RMSE_perc            MAE       MAE_perc
#>    1.939218713    0.023333409    1.192632747
#>
#>
#> Cross-Validation
#> ------------------------------
#> Parameters:
#>   .fold      MSS      MAC       TAU     PMAX
#> 1     1 8.693800 10.15512 0.8561005 22.07163
#> 2     2 8.560667 10.76319 0.7953649 23.03503
#> 3     3 8.394674 11.05010 0.7596925 23.19049
#> 4     4 8.571600 10.75079 0.7972998 23.03786
#> 5     5 8.608052 10.58783 0.8130141 22.78514
#> 6     6 8.599600 10.54821 0.8152661 22.67760
#>
#> Testing model fit estimators (overall):
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>     0.99901083    -0.01236576    -0.85484642    -0.08009034    -5.96012088
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>     0.03444978     1.09399112     0.08009034     5.96012088     0.04742764
#>      RMSE_perc            MAE       MAE_perc
#>     2.59202750     0.03923868     1.72270380

Radar gun data often comes with much more observations, thus we can set smaller CV parameter:

jim_profile_CV <- shorts::model_radar_gun(
  time = jim_data$time,
  velocity = jim_data$velocity,
  CV = 10
)

jim_profile_CV
#> Estimated model parameters
#> --------------------------
#>        MSS        MAC        TAU       PMAX
#>  7.9980115  8.9987070  0.8887956 17.9929403
#>
#> Estimated model corrections
#> --------------------------
#>            TC
#> -0.0001104572
#>
#> Model fit estimators
#> --------------------
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   9.992441e-01  -2.481182e-08           -Inf  -1.640451e-01           -Inf
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   1.511234e-01   2.332511e+00   1.640451e-01            Inf   5.050254e-02
#>      RMSE_perc            MAE       MAE_perc
#>            Inf   3.927236e-02            Inf
#>
#>
#> Cross-Validation
#> ------------------------------
#> Parameters:
#>    .fold      MSS      MAC       TAU     PMAX
#> 1      1 7.997012 8.994930 0.8890577 17.98314
#> 2      2 7.997697 9.003190 0.8883182 18.00120
#> 3      3 7.997266 8.997429 0.8888391 17.98871
#> 4      4 7.998063 8.997914 0.8888796 17.99147
#> 5      5 7.999258 8.998932 0.8889119 17.99619
#> 6      6 7.998143 9.002309 0.8884545 18.00044
#> 7      7 7.998979 8.995074 0.8892622 17.98785
#> 8      8 7.998321 9.001374 0.8885668 17.99897
#> 9      9 7.998101 9.006872 0.8879998 18.00947
#> 10    10 7.997287 8.988672 0.8897072 17.97125
#>
#> Testing model fit estimators (overall):
#>             R2        meanErr   meanErr_perc         minErr    minErr_perc
#>   9.992387e-01  -1.379258e-05           -Inf  -1.616499e-01           -Inf
#>         maxErr    maxErr_perc      maxAbsErr maxAbsErr_perc           RMSE
#>   1.507892e-01   2.327353e+00   1.616499e-01            Inf   5.068118e-02
#>      RMSE_perc            MAE       MAE_perc
#>            Inf   3.944147e-02            Inf

Optimization

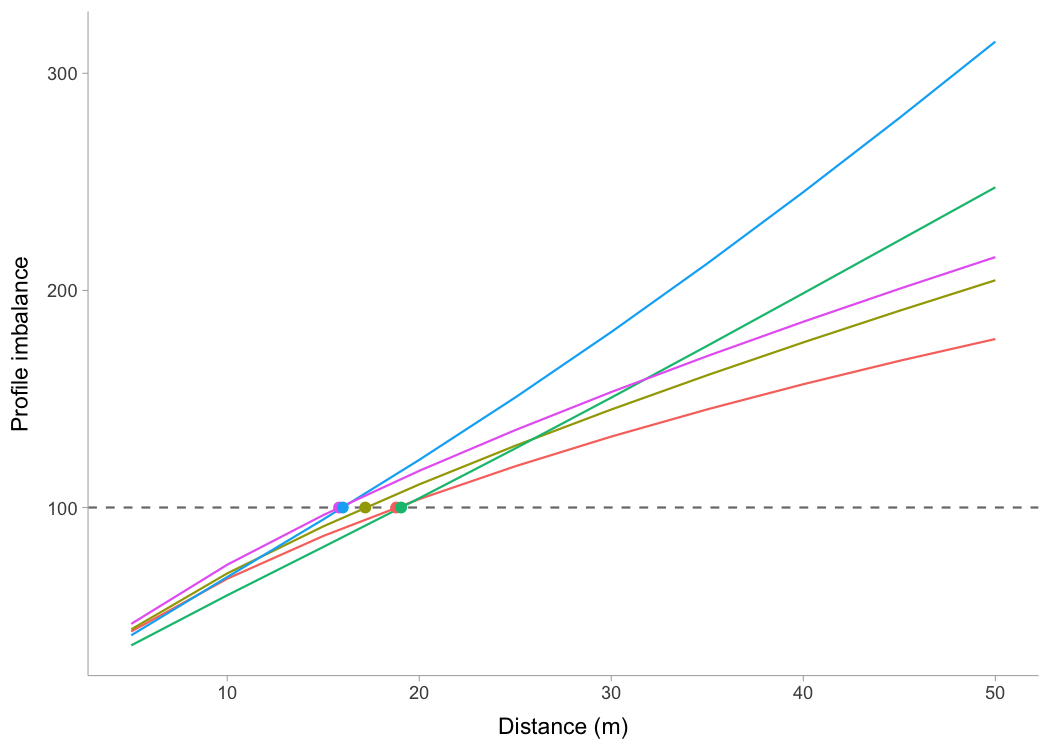

Using the method outlined in Samozino et al (2022), one can find the optimal profiles, as well as the profile imbalance (compared to the optimal), for both sprint profiles (i.e., \(MSS\) and \(MAC\)) and Force-Velocity (FV). In addition to this, one can probe the profiles (i.e., increase \(V0\) / \(F0\) or \(MSS\) / \(MAC\) for say 2.5% to check which improvement yield more improvement in sprint time). The following graph depicts estimate profile imbalances. Note that >100% is velocity deficit (i.e., increasing velocity; \(MSS\) or \(V0\); will yield more improvement in sprint times), while <100% is force deficit.

MSS <- 10
MAC <- 8
bodymass <- 75

fv <- create_FVP(MSS, MAC, bodymass)

opt_df <- tibble(
  dist = seq(5, 50, by = 5)
) %>%
  mutate(
    `Sprint Profile` = optimal_MSS_MAC(
      distance = dist,
      MSS,
      MAC
    )[["profile_imb"]],
    `FV Profile` = optimal_FV(
      distance = dist,
      fv$F0,
      fv$V0,
      bodymass
    )[["profile_imb"]],
    `FV Profile (PeakPower)` = optimal_FV(
      distance = dist,
      fv$F0,
      fv$V0,
      bodymass,
      method = "peak"
    )[["profile_imb"]],
    `Probe FV` = probe_FV(
      distance = dist,
      fv$F0,
      fv$V0,
      bodymass
    )[["profile_imb"]],
    `Probe MSS/MAC` = probe_MSS_MAC(
      distance = dist,
      MSS,
      MAC
    )[["profile_imb"]]
  ) %>%
  pivot_longer(-dist, names_to = "profile")

opt_dist <- tibble(
  `Sprint Profile` = find_optimal_distance(
    MSS,
    MAC,
    optimal_func = optimal_MSS_MAC
  ),
  `FV Profile` = find_optimal_distance(
    fv$F0,
    fv$V0,
    bodymass,
    optimal_func = optimal_FV
  ),
  `FV Profile (PeakPower)` = find_optimal_distance(
    fv$F0,
    fv$V0,
    bodymass,
    optimal_func = optimal_FV,
    method = "peak"
  ),
  `Probe FV` = find_optimal_distance(
    fv$F0,
    fv$V0,
    bodymass,
    optimal_func = probe_FV
  ),
  `Probe MSS/MAC` = find_optimal_distance(
    MSS,
    MAC,
    optimal_func = probe_MSS_MAC
  )
) %>%
  pivot_longer(cols = 1:5, names_to = "profile")

ggplot(opt_df, aes(x = dist, y = value, color = profile)) +
  theme_bw() +
  geom_hline(yintercept = 100, linetype = "dashed", alpha = 0.6) +
  geom_line() +
  geom_point(data = opt_dist, aes(x = value, y = 100), size = 2) +
  xlab("Distance (m)") +
  ylab("Profile imbalance")

Creating your own data

One can use the {shorts}} package for simulating data by using two functions: create_sprint_trace() and create_timing_gates_splits():

create_sprint_trace(
  MSS = 7, MAC = 6,
  distance = c(5, 10, 20, 30, 40),
  # Add flying distance
  FD = 0.5)
#>       time distance velocity acceleration sprint_time sprint_distance
#> 1 1.241196        5 5.333967   1.42802852    1.674709             5.5
#> 2 2.100178       10 6.202142   0.68387846    2.533690            10.5
#> 3 3.625761       20 6.784214   0.18495957    4.059274            20.5
#> 4 5.079956       30 6.937957   0.05318010    5.513469            30.5
#> 5 6.515848       40 6.981879   0.01553227    6.949361            40.5

create_timing_gates_splits(
  MSS = 7, MAC = 6,
  gates = c(5, 10, 20, 30, 40),
  # Add time-shift (i.e., rection time of 200ms)
  TC = 0.2)
#> [1] 1.779729 2.652703 4.185497 5.641381 7.077741

Using predict_ family of functions, one can predict kinematics and kinetics using known \(MSS\) and \(MAC\) parameters.

Publications

  1. Jovanović, M., Vescovi, J.D. (2022). {shorts}: An R Package for Modeling Short Sprints. International Journal of Strength and Conditioning, 2(1). https://doi.org/10.47206/ijsc.v2i1.74

  2. Jovanović M. (2023). Bias in estimated short sprint profiles using timing gates due to the flying start: simulation study and proposed solutions. Computer Methods in Biomechanics and Biomedical Engineering:1–11. https://doi.org/10.1080/10255842.2023.2170713

  3. Vescovi, JD and Jovanović, M. (2021). Sprint Mechanical Characteristics of Female Soccer Players: A Retrospective Pilot Study to Examine a Novel Approach for Correction of Timing Gate Starts. Front Sports Act Living 3: 629694, 2021. https://doi.org/10.3389/fspor.2021.629694

Citation

To cite {shorts}, please use the following command to get the BibTex entry:

citation("shorts")

References

Please refer to these publications for more information on short sprints modeling using mono-exponential equation:

Chelly SM, Denis C. 2001. Leg power and hopping stiffness: relationship with sprint running performance: Medicine and Science in Sports and Exercise:326–333. DOI: 10.1097/00005768-200102000-00024.

Clark KP, Rieger RH, Bruno RF, Stearne DJ. 2017. The NFL Combine 40-Yard Dash: How Important is Maximum Velocity? Journal of Strength and Conditioning Research:1. DOI: 10.1519/JSC.0000000000002081.

Clavel, P., Leduc, C., Morin, J.-B., Buchheit, M., & Lacome, M. (2023). Reliability of individual acceleration-speed profile in-situ in elite youth soccer players. Journal of Biomechanics, 153, 111602. https://doi.org/10.1016/j.jbiomech.2023.111602

Furusawa K, Hill AV, and Parkinson JL. The dynamics of” sprint” running. Proceedings of the Royal Society of London. Series B, Containing Papers of a Biological Character 102 (713): 29-42, 1927

Greene PR. 1986. Predicting sprint dynamics from maximum-velocity measurements. Mathematical Biosciences 80:1–18. DOI: 10.1016/0025-5564(86)90063-5.

Haugen TA, Tønnessen E, Seiler SK. 2012. The Difference Is in the Start: Impact of Timing and Start Procedure on Sprint Running Performance: Journal of Strength and Conditioning Research 26:473–479. DOI: 10.1519/JSC.0b013e318226030b.

Samozino P, Rabita G, Dorel S, Slawinski J, Peyrot N, Saez de Villarreal E, Morin J-B. 2016. A simple method for measuring power, force, velocity properties, and mechanical effectiveness in sprint running: Simple method to compute sprint mechanics. Scandinavian Journal of Medicine & Science in Sports 26:648–658. DOI: 10.1111/sms.12490.

Samozino P. 2018. A Simple Method for Measuring Force, Velocity and Power Capabilities and Mechanical Effectiveness During Sprint Running. In: Morin J-B, Samozino P eds. Biomechanics of Training and Testing. Cham: Springer International Publishing, 237–267. DOI: 10.1007/978-3-319-05633-3_11.

Samozino P, Peyrot N, Edouard P, Nagahara R, Jimenez‐Reyes P, Vanwanseele B, Morin J. 2022. Optimal mechanical force‐velocity profile for sprint acceleration performance.Scandinavian Journal of Medicine & Science in Sports 32:559–575. DOI: 10.1111/sms.14097.
