R package rEMM: Extensible Markov Model for Modelling Temporal Relationships Between Clusters

CRAN version stream r-universe status CRAN RStudio mirror downloads

Implements TRACDS (Temporal Relationships between Clusters for Data Streams), a generalization of Extensible Markov Model (EMM), to model transition probabilities in sequence data. TRACDS adds a temporal or order model to data stream clustering by superimposing a dynamically adapting Markov Chain. Also provides an implementation of EMM (TRACDS on top of tNN data stream clustering).

Interface classes DSC_tNN and DSC_EMM for the stream package are provided.

Installation

Stable CRAN version: install from within R with

install.packages("rEMM")

Current development version: Install from r-universe.

Usage

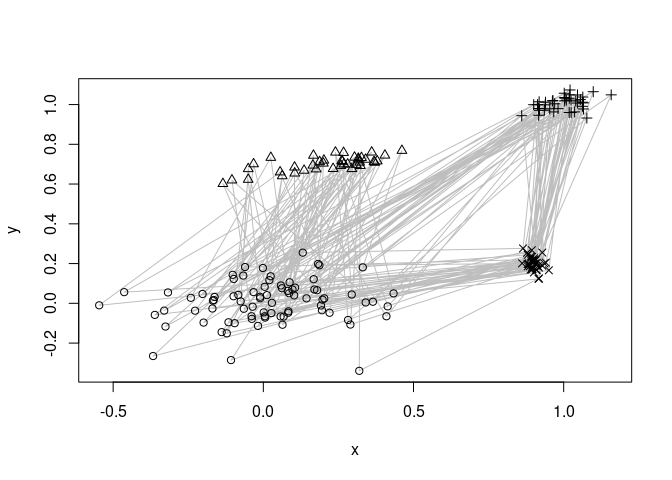

We use a artificial dataset with a mixture of four clusters components. Points are generated using a fixed sequence <1,2,1,3,4> through the four clusters. The lines below indicate the sequence.

library(rEMM)

data("EMMsim")

plot(EMMsim_train, pch = NA)
lines(EMMsim_train, col = "gray")
points(EMMsim_train, pch = EMMsim_sequence_train)

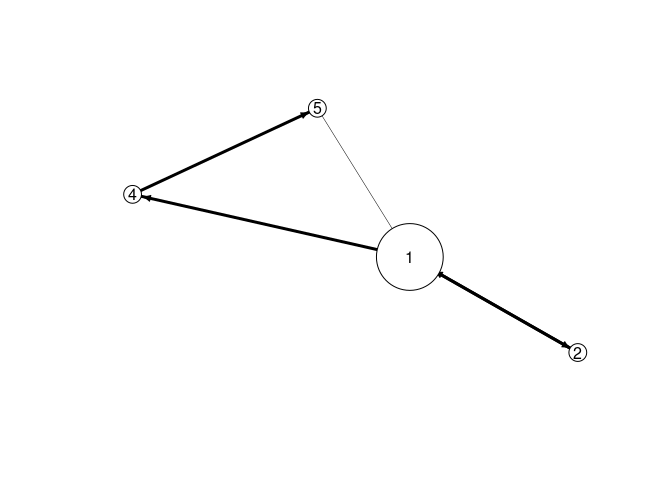

EMM recovers the components and the sequence information. We use EMM and then recluster the found structure assuming that we know that there are 4 components. The graph below represents a Markov model of the found sequence.

emm <- EMM(threshold = 0.1, measure = "euclidean")
build(emm, EMMsim_train)
emmc <- recluster_hclust(emm, k = 4, method = "average")
plot(emmc)

We can now score new sequences (we use a test sequence created in the same way as the training data) by calculating the product the transition probabilities in the model. The high score indicates this.

score(emmc, EMMsim_test)
## [1] 0.71

References

Acknowledgements

Development of this package was supported in part by NSF IIS-0948893 and R21HG005912 from the National Human Genome Research Institute.
