Type: Package
Title: Hazard of Multi-Stage Clonal Expansion Models
Version: 1.0.2
Date: 2025-12-05
Author: Cristoforo Simonetto ORCID iD [aut, cre], Jan Christian Kaiser [ctb]
Maintainer: Cristoforo Simonetto <cristoforo.simonetto@ph.tum.de>
Description: Functions to calculate hazard and survival function of Multi-Stage Clonal Expansion Models used in cancer epidemiology. For the Two-Stage Clonal Expansion Model an exact solution is implemented assuming piecewise constant parameters, see Heidenreich, Luebeck, Moolgavkar (1997) <doi:10.1111/j.1539-6924.1997.tb00878.x>. Numerical solutions are provided for its extensions, see also Little, Vineis, Li (2008) <doi:10.1016/j.jtbi.2008.05.027>.
License: GPL-2 | GPL-3 [expanded from: GPL (≥ 2)]
Imports: Rcpp (≥ 1.0.3), RcppParallel (≥ 5.0.0)
LinkingTo: Rcpp, RcppParallel
Encoding: UTF-8
RoxygenNote: 7.3.3
Suggests: knitr, rmarkdown, testthat
VignetteBuilder: knitr
NeedsCompilation: yes
Packaged: 2025-12-16 23:37:14 UTC; cristoforo
Repository: CRAN
Date/Publication: 2025-12-17 00:00:02 UTC

msce: Hazard of Multi-Stage Clonal Expansion Models

Description

Functions to calculate hazard and survival function of Multi-Stage Clonal Expansion Models used in cancer epidemiology. For the Two-Stage Clonal Expansion Model an exact solution is implemented assuming piecewise constant parameters, see Heidenreich, Luebeck, Moolgavkar (1997) doi:10.1111/j.1539-6924.1997.tb00878.x. Numerical solutions are provided for its extensions, see also Little, Vineis, Li (2008) doi:10.1016/j.jtbi.2008.05.027.

Author(s)

Maintainer: Cristoforo Simonetto cristoforo.simonetto@ph.tum.de (ORCID)

Other contributors:

Exemplary person year table

Description

Data set of fatal lung cancer in rats exposed to Radon at Pacific Northwest National Laboratory. For each rat, the age at start of Radon exposure, the age at end of exposure and the age at end of follow-up/death is provided in weeks. The Radon dose rate is given in WL (working level).

Usage

data(lungCancerRadon)

Format

Data frame with 5 variables.

Source

Pacific Northwest National Laboratory, see Heidenreich, W, Jacob P, Paretzke H., et al. (1999). Radiation research, 151 2, 209-17 DOI:10.2307/3579772.

Examples

data(lungCancerRadon)
lungCancerRadon[1000,]

Exemplary person year table

Description

Fictitious data set providing the number of lung cancer cases and person years in some population stratified according to age, age of smoking start, age of smoking cessation, and average number of cigarettes per day during the active smoking period.

Usage

data(lungCancerSmoking)

Format

Data frame with 6 variables.

Source

Fictitious data set, only for illustration and test.

Examples

data(lungCancerSmoking)
lungCancerSmoking[1000,]

Numerical solution of the Multi-Stage Clonal Expansion Model

Description

This function aims to solve the general multi-stage model with piecewise constant parameters approximatively by integrating the characteristic equations with Euler's method. For sufficiently small time intervalls, this approximation often yields reasonable results. Small time intervals can either be provided explicitly with many columns in argument t. An alternative is the optional parameter innerSteps.

Usage

msce_numerical(t, parameterList, innerSteps = 1000L)

Arguments

t

Each element in a row of t defines the endpoint of a time interval. The first time interval starts at time 0. The last element is the time point for which hazard and survival function are evaluated. Elements in a row have to be in monotonously increasing order. In order to achieve a different number of time intervals for different rows, rows may start with an arbitrary number of zeros (i.e. time intervals of length zero).

parameterList

List of Matrices. Each list member has to be named. Allowed names are Nnu0, alphaX, gammaX, and nuX where X can be any positive integer value. The number of stages is deduced from nuX with the highest X. Matrices Nnu0 and successive nuX must be provided. Missing other matrices are assumed to be zero. For each matrix it has to hold that the number of columns must be equal to the ones in t. The number of rows can either equal to the number of rows in t, or only one row is provided, which then is applied to all rows of t.

Values in matrices Nnu0, alphaX, gammaX, nuX correspond to parameters for each time interval, see the figure and explanations in the package vignette. Here, Nnu0 is the product of N and \nu_0 and \gamma_X is defined by \alpha_X-\beta_X.

innerSteps

Positive integer. To improve accuracy, each time interval is internally divided into innerSteps time intervals of equal length. Defaults to 1000. Note, however, that even in the limit of infinite innerSteps, there will always be a finite discrepancy to the exact result.

Details

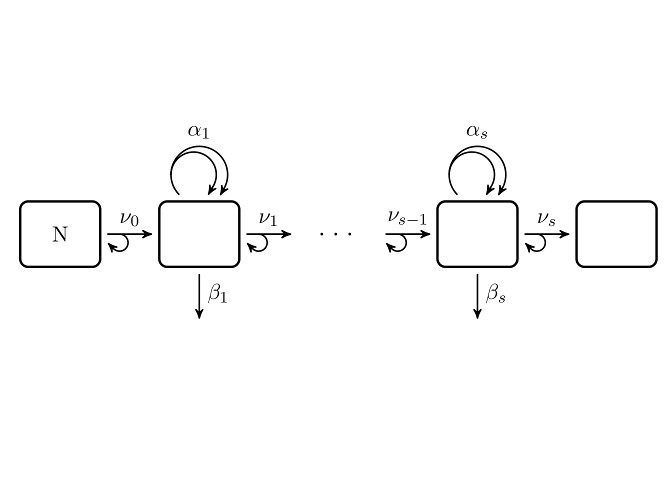

Schematic depiction of the MSCE model. See the package vignette for details.

Value

The output list contains all used arguments of the parameterList and vectors of the model results for hazard and logarithm of the survival function for each row of the input.

See Also

tsce

Examples

t <-matrix(data=c(10,20,65,10,20,70),nrow=2,byrow=TRUE)
Nnu0 <- matrix(c(0.3,0.7,1),nrow = 1)
nu1  <- matrix(1e-6,nrow=1,ncol=3)
alpha1<- matrix(1,nrow=1,ncol=3)
gamma1<- matrix(c(0.13,0.13,0.13, 0.15,0.15,0.15),nrow=2,byrow=TRUE)
pars = list(Nnu0=Nnu0, nu1=nu1,alpha1=alpha1,gamma1=gamma1)

msce_numerical(t,pars)

Exact solution of the Two-Stage Clonal Expansion Model

Description

For piecewise constant parameters tsce(t,parameterList) returns the exact hazard and logarithm of the survival function of the Two-Stage Clonal Expansion Model. All arguments are matrices. Evaluation is performed separately for each row.

Usage

tsce(t, parameterList)

Arguments

t

Each element in a row of t defines the endpoint of a time interval. The first time interval starts at time 0. The last element is the time point for which hazard and survival function are evaluated. Elements in a row have to be in monotonously increasing order. In order to achieve a different number of time intervals for different rows, rows may start with an arbitrary number of zeros (i.e. time intervals of length zero).

parameterList

List of Matrices. Each list member has to be named. Allowed names are Nnu0, alpha, gamma, and nu1. Matrices Nnu0 and nu1 must be provided. If alpha or gamma are missing, they are assumed to be zero. For each matrix it has to hold that the number of columns must be equal to the ones in t. The number of rows can either equal to the number of rows in t, or only one row is provided, which then is applied to all rows of t.

Values in matrices Nnu0, alpha, gamma, nu1 correspond to parameters for each time interval, see the figure and explanations in the package vignette. Here, Nnu0 is the product of N and \nu_0 and \gamma is defined by \alpha-\beta.

Details

Schematic depiction of the TSCE model. See the package vignette for details.

Value

Returns a list. Besides the parameters of the parameterList, it contains two named components: hazard the exact hazard and lnSurvival the logarithm of the survival function of the Two-Stage Clonal Expansion Model.

See Also

msce_numerical

Examples

t <-matrix(data=c(10,20,65,10,20,70),nrow=2,byrow=TRUE)
Nnu0 <- matrix(c(0.3,0.7,1),nrow = 1)
alpha<- matrix(1,nrow=1,ncol=3)
gamma<- matrix(c(0.13,0.13,0.13, 0.15,0.15,0.15),nrow=2,byrow=TRUE)
nu1  <- matrix(1e-6,nrow=1,ncol=3)
pars = list(Nnu0=Nnu0, alpha=alpha,gamma=gamma,nu1=nu1)

tsce(t,pars)
