getspanel

R build status CRAN status

The package is a panel adaptation of the gets package see here.

This code is being developed by Felix Pretis and Moritz Schwarz. The associated working paper is published under “Panel Break Detection: Detecting Unknown Treatment, Stability, Heterogeneity, and Outliers” by Pretis and Schwarz, which is available at SSRN here and was applied to a study by Nico Koch and colleagues on EU Road CO2 emissions, which was published in Nature Energy in 2022.

Installation

You can install the released version of getspanel from CRAN with:

install.packages("getspanel")

And the development version from GitHub with:

# install.packages("devtools")
devtools::install_github("moritzpschwarz/getspanel")

Example

library(getspanel)

data("EU_emissions_road")
# let's subset a few countries to make this faster
subset <- c("Austria", "Belgium", "Germany", "Denmark", "Spain",
                 "France",  "Greece", "Ireland", "Italy", "Netherlands", "Sweden", "United Kingdom")

EU_emissions_road <- EU_emissions_road[EU_emissions_road$country %in% subset, ]

is1 <- isatpanel(data = EU_emissions_road,
                 formula = transport.emissions ~ lgdp + lpop,
                 index = c("country","year"),
                 effect = "twoways",
                 fesis = TRUE,

                 print.searchinfo = FALSE # to save space we suppress the status information in the estimation
)
Loading required namespace: gets
is1

Date: Sat Jan 28 18:02:02 2023
Dependent var.: y
Method: Ordinary Least Squares (OLS)
Variance-Covariance: Ordinary
No. of observations (mean eq.): 576
Sample: 1 to 576

SPECIFIC mean equation:

                             coef std.error   t-stat   p-value
lgdp                     16166.01   3698.62   4.3708 1.509e-05 ***
lpop                    -20201.86  10799.14  -1.8707 0.0619766 .
idBelgium                 4000.22   2640.51   1.5149 0.1304241
idDenmark               -10845.73   4359.12  -2.4881 0.0131716 *
idFrance                 66188.67  17508.65   3.7803 0.0001757 ***
idGermany                96272.86  20912.34   4.6036 5.282e-06 ***
idGreece                  2817.26   3132.58   0.8993 0.3689070
idIreland                -2658.34   6880.04  -0.3864 0.6993776
idItaly                  58752.06  17821.58   3.2967 0.0010485 **
idNetherlands             8562.85   5385.59   1.5900 0.1124814
idSpain                  33677.26  14651.99   2.2985 0.0219497 *
idSweden                   530.17   1505.34   0.3522 0.7248433
idUnitedKingdom          74109.40  17971.66   4.1237 4.371e-05 ***
time1971                -93833.18 128577.79  -0.7298 0.4658707
time1972                -92624.47 128613.12  -0.7202 0.4717540
time1973                -91506.49 128640.52  -0.7113 0.4772111
time1974                -92809.71 128679.42  -0.7212 0.4710971
time1975                -91394.63 128722.81  -0.7100 0.4780309
time1976                -91124.39 128743.15  -0.7078 0.4794020
time1977                -89888.88 128771.65  -0.6980 0.4854738
time1978                -89589.36 128829.40  -0.6954 0.4871236
time1979                -88915.27 128852.38  -0.6901 0.4904822
time1980                -88877.13 128882.84  -0.6896 0.4907706
time1981                -89182.08 128916.46  -0.6918 0.4893980
time1982                -88663.53 128934.20  -0.6877 0.4919852
time1983                -88159.12 128943.82  -0.6837 0.4944828
time1984                -87325.32 128948.20  -0.6772 0.4985869
time1985                -87069.20 128951.95  -0.6752 0.4998592
time1986                -87107.37 128982.22  -0.6753 0.4997720
time1987                -84505.33 129007.82  -0.6550 0.5127454
time1988                -81052.83 128991.08  -0.6284 0.5300574
time1989                -78570.84 129025.01  -0.6090 0.5428309
time1990                -75690.17 129052.59  -0.5865 0.5578021
time1991                -74748.84 129094.31  -0.5790 0.5628352
time1992                -73233.68 129137.90  -0.5671 0.5709050
time1993                -72308.53 129181.74  -0.5597 0.5759077
time1994                -73875.92 129191.56  -0.5718 0.5676946
time1995                -73018.31 129151.13  -0.5654 0.5720771
time1996                -72144.60 129169.49  -0.5585 0.5767369
time1997                -72079.39 129182.02  -0.5580 0.5771182
time1998                -71319.91 129195.70  -0.5520 0.5811764
time1999                -70971.83 129234.39  -0.5492 0.5831350
time2000                -71458.66 129252.29  -0.5529 0.5806071
time2001                -71093.29 129287.58  -0.5499 0.5826458
time2002                -70620.12 129332.12  -0.5460 0.5852860
time2003                -70244.19 129386.95  -0.5429 0.5874424
time2004                -69754.87 129430.26  -0.5389 0.5901715
time2005                -70463.80 129480.18  -0.5442 0.5865447
time2006                -70448.29 129526.82  -0.5439 0.5867618
time2007                -70673.44 129581.24  -0.5454 0.5857245
time2008                -72625.71 129645.08  -0.5602 0.5756036
time2009                -73646.87 129713.53  -0.5678 0.5704511
time2010                -74469.83 129746.95  -0.5740 0.5662536
time2011                -75277.18 129769.49  -0.5801 0.5621215
time2012                -77342.82 129804.50  -0.5958 0.5515534
time2013                -76958.54 129839.27  -0.5927 0.5536376
time2014                -76505.27 129870.02  -0.5891 0.5560684
time2015                -76179.65 129898.07  -0.5865 0.5578351
time2016                -75655.80 129937.92  -0.5822 0.5606657
time2017                -75528.82 129969.34  -0.5811 0.5614182
time2018                -76549.16 129999.52  -0.5888 0.5562354
fesisAustria.1987       -14752.52   1654.35  -8.9174 < 2.2e-16 ***
fesisBelgium.1989       -12941.87   1596.28  -8.1075 4.072e-15 ***
fesisGermany.1978        18284.76   2048.76   8.9248 < 2.2e-16 ***
fesisGermany.1987        19086.84   2032.35   9.3915 < 2.2e-16 ***
fesisGermany.1998         7350.67   2158.87   3.4049 0.0007156 ***
fesisGermany.2003       -16943.32   2116.72  -8.0045 8.574e-15 ***
fesisDenmark.1988       -18253.66   1644.62 -11.0990 < 2.2e-16 ***
fesisSpain.1994          16853.70   1782.70   9.4541 < 2.2e-16 ***
fesisSpain.2003          13298.86   1734.13   7.6689 9.236e-14 ***
fesisFrance.1976         13435.71   2113.43   6.3573 4.661e-10 ***
fesisFrance.1988         15148.31   1763.04   8.5921 < 2.2e-16 ***
fesisUnitedKingdom.1986  14711.60   1686.10   8.7252 < 2.2e-16 ***
fesisGreece.1988        -10814.35   1814.16  -5.9611 4.761e-09 ***
fesisIreland.1987       -17863.87   1999.58  -8.9338 < 2.2e-16 ***
fesisIreland.1995        -8728.46   2241.13  -3.8947 0.0001118 ***
fesisItaly.1986          18109.81   1836.05   9.8635 < 2.2e-16 ***
fesisItaly.1999           5542.89   1534.77   3.6116 0.0003354 ***
fesisNetherlands.1986   -10588.43   1689.90  -6.2657 8.062e-10 ***
fesisSweden.1990        -16740.92   1560.10 -10.7307 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Diagnostics and fit:

                  Chi-sq df   p-value
Ljung-Box AR(1)   273.47  1 < 2.2e-16 ***
Ljung-Box ARCH(1) 203.28  1 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

SE of regression  3787.68635
R-squared            0.99428
Log-lik.(n=576)  -5523.26673

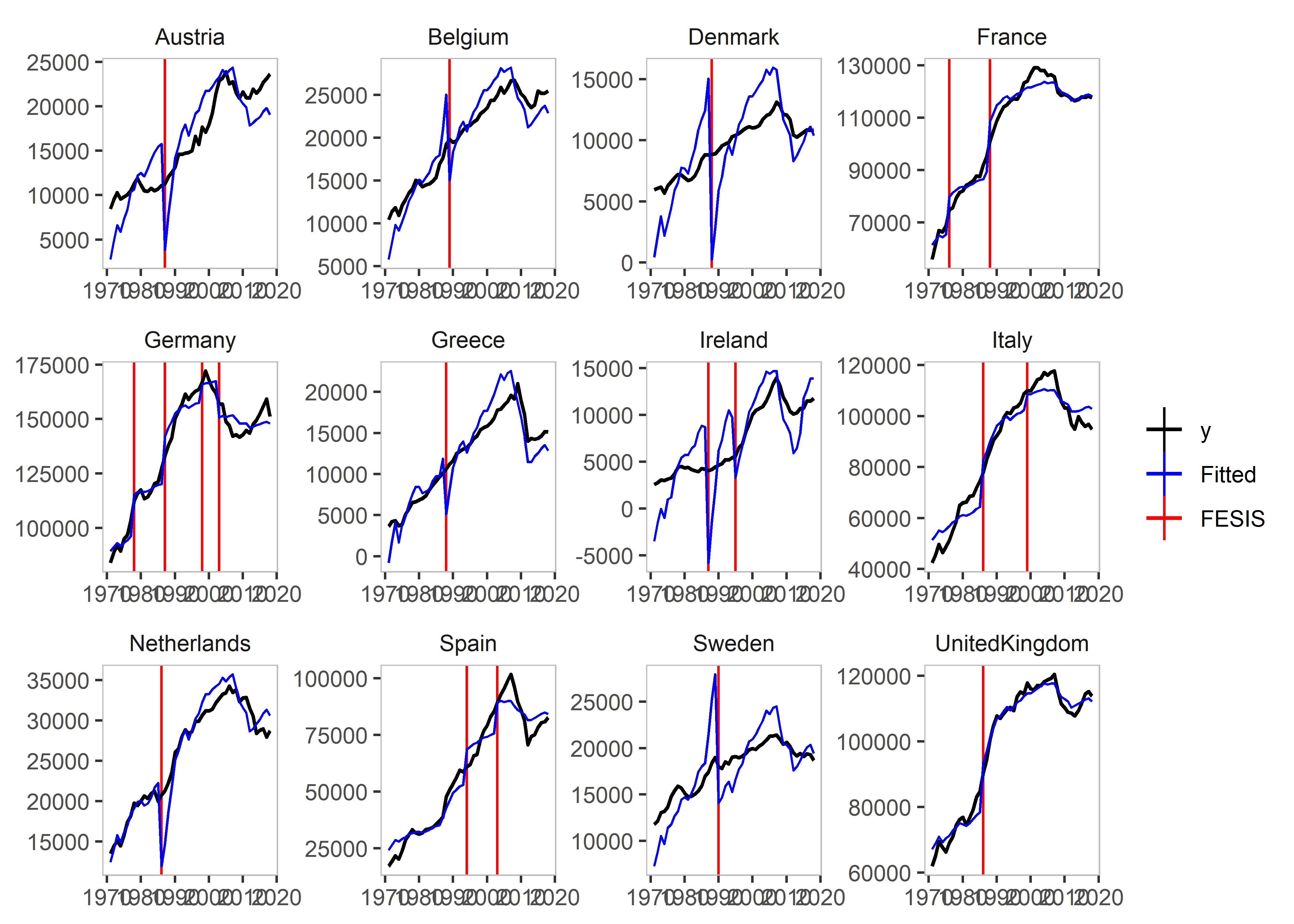

plot(is1)

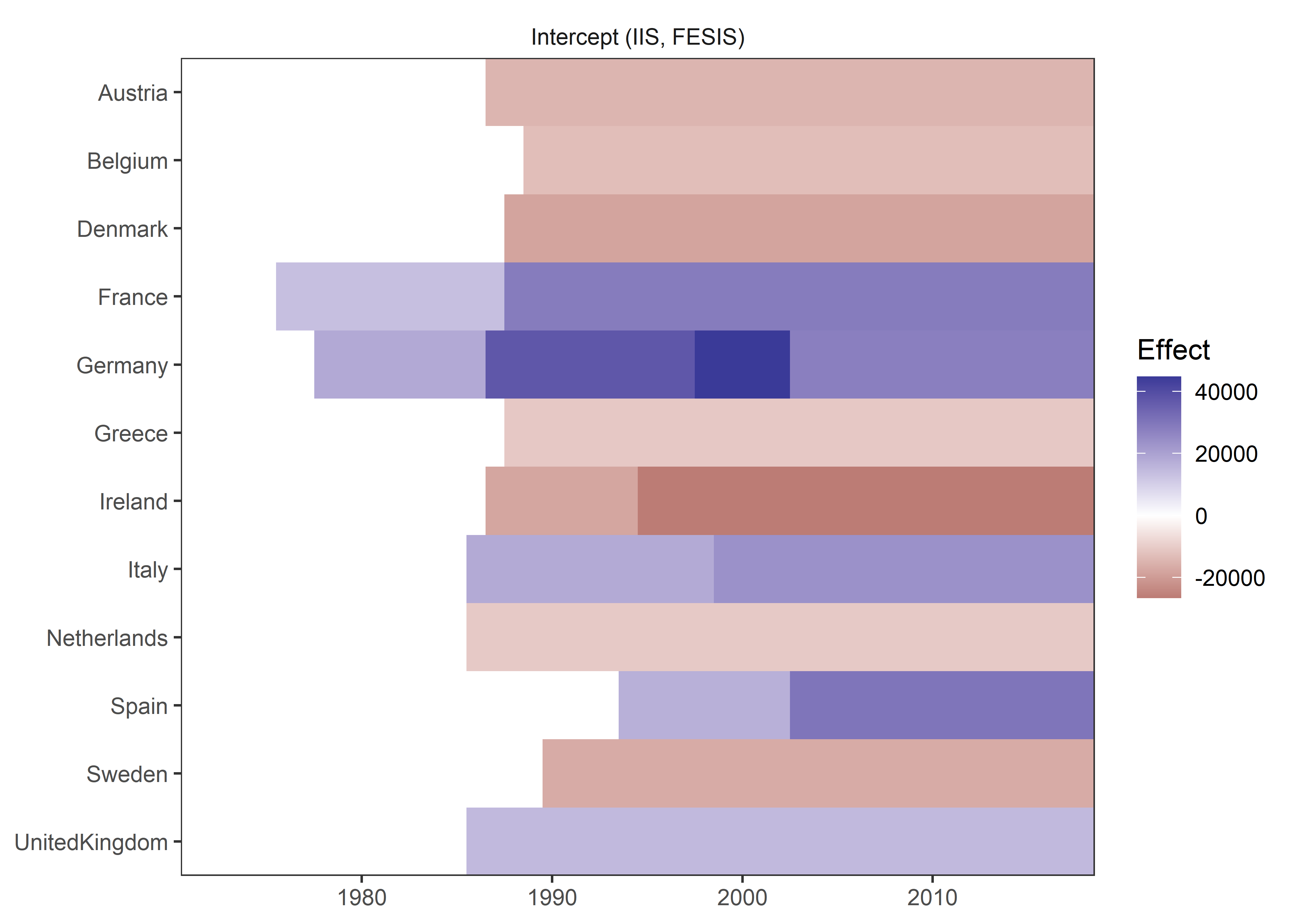

Let’s explore the other plots that we can use:

plot_grid(is1)

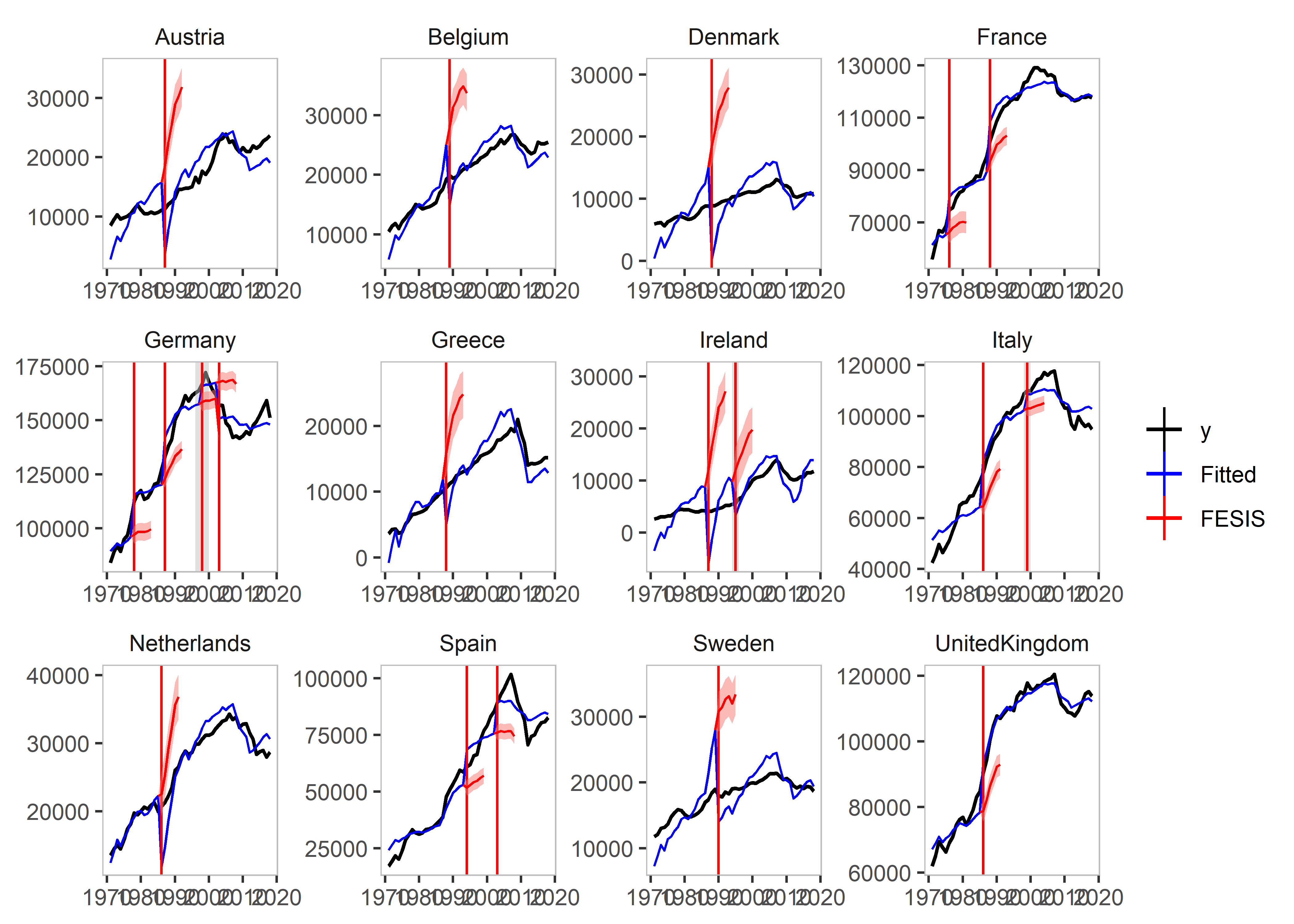

We can plot the counterfactuals as well:

plot_counterfactual(is1, plus_t = 5)

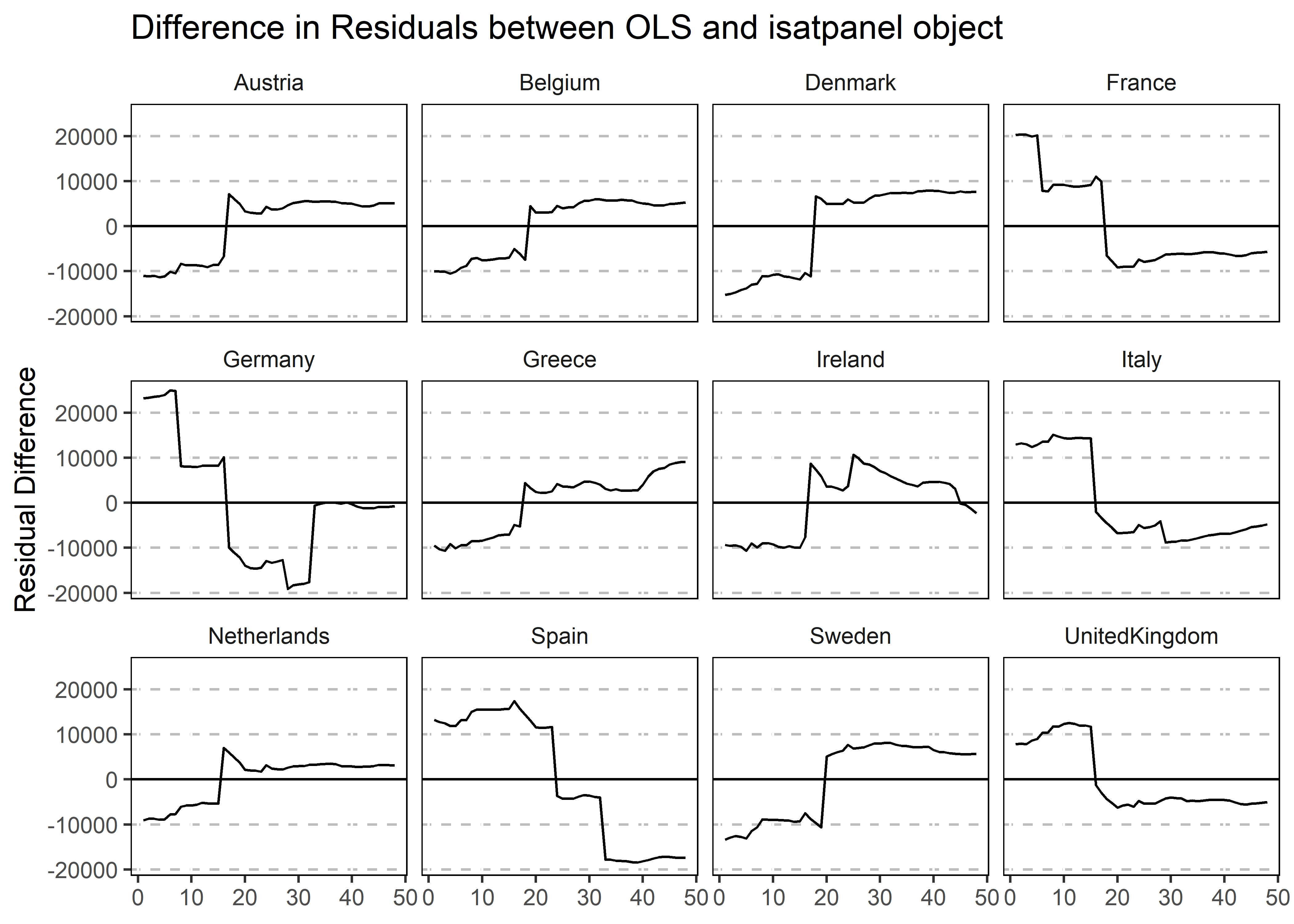

We can plot the residuals against an OLS model:

plot_residuals(is1)

An example using coefficient step indicator saturation and impulse indicator saturation:

is2 <- isatpanel(data = EU_emissions_road,
                 formula = transport.emissions ~ lgdp + lpop,
                 index = c("country","year"),
                 effect = "twoways",
                 csis = TRUE,
                 iis = TRUE,
                 print.searchinfo = FALSE # to save space we suppress the status information in the estimation
)
is2

Date: Sat Jan 28 18:04:11 2023
Dependent var.: y
Method: Ordinary Least Squares (OLS)
Variance-Covariance: Ordinary
No. of observations (mean eq.): 576
Sample: 1 to 576

SPECIFIC mean equation:

                     coef std.error  t-stat   p-value
lgdp             -1309.59   5200.07 -0.2518 0.8012641
lpop            -19713.06  18182.85 -1.0842 0.2788025
idBelgium         9344.72   4456.79  2.0967 0.0365039 *
idDenmark       -14714.45   7266.18 -2.0251 0.0433767 *
idFrance        130800.79  30255.98  4.3231 1.847e-05 ***
idGermany       170095.59  34685.82  4.9039 1.262e-06 ***
idGreece           920.57   6102.51  0.1509 0.8801518
idIreland       -24556.72  10798.40 -2.2741 0.0233701 *
idItaly         113904.80  29959.95  3.8019 0.0001608 ***
idNetherlands    23780.80   9735.94  2.4426 0.0149178 *
idSpain          77098.98  25550.27  3.0175 0.0026744 **
idSweden          4113.59   2449.85  1.6791 0.0937360 .
idUnitedKingdom 125238.32  30372.14  4.1235 4.350e-05 ***
time1971        337573.55 212025.05  1.5921 0.1119668
time1972        339667.96 212047.13  1.6019 0.1098017
time1973        341774.30 212049.80  1.6118 0.1076259
time1974        340827.37 212103.40  1.6069 0.1086908
time1975        342319.90 212178.45  1.6134 0.1072792
time1976        344453.70 212185.76  1.6234 0.1051245
time1977        346175.55 212214.20  1.6313 0.1034478
time1978        348560.87 212233.20  1.6423 0.1011282
time1979        349821.30 212246.78  1.6482 0.0999252 .
time1980        350130.80 212289.04  1.6493 0.0996936 .
time1981        349850.02 212348.93  1.6475 0.1000603
time1982        350556.90 212372.10  1.6507 0.0994150 .
time1983        351326.17 212376.83  1.6543 0.0986843 .
time1984        352617.08 212362.73  1.6604 0.0974332 .
time1985        353327.57 212347.60  1.6639 0.0967385 .
time1986        355549.70 212341.16  1.6744 0.0946539 .
time1987        357446.66 212336.68  1.6834 0.0929045 .
time1988        360407.35 212310.28  1.6976 0.0901968 .
time1989        362433.36 212303.25  1.7071 0.0883970 .
time1990        364443.78 212327.77  1.7164 0.0866864 .
time1991        365699.26 212388.28  1.7218 0.0856984 .
time1992        367440.24 212456.52  1.7295 0.0843216 .
time1993        368344.48 212537.31  1.7331 0.0836798 .
time1994        368733.81 212546.04  1.7348 0.0833671 .
time1995        369413.53 212548.84  1.7380 0.0828055 .
time1996        370723.06 212560.90  1.7441 0.0817419 .
time1997        371431.92 212552.15  1.7475 0.0811491 .
time1998        373440.00 212544.32  1.7570 0.0795123 .
time1999        374926.57 212536.25  1.7641 0.0783148 .
time2000        375183.25 212531.99  1.7653 0.0781055 .
time2001        375960.72 212575.83  1.7686 0.0775533 .
time2002        376750.81 212641.21  1.7718 0.0770244 .
time2003        377108.67 212712.58  1.7729 0.0768437 .
time2004        378138.04 212764.59  1.7773 0.0761156 .
time2005        377829.39 212835.61  1.7752 0.0764526 .
time2006        378465.72 212889.63  1.7778 0.0760340 .
time2007        378767.26 212962.49  1.7786 0.0759012 .
time2008        376797.02 213079.76  1.7683 0.0775964 .
time2009        375029.37 213241.76  1.7587 0.0792215 .
time2010        374489.45 213288.57  1.7558 0.0797191 .
time2011        373808.44 213323.35  1.7523 0.0803158 .
time2012        371578.43 213395.33  1.7413 0.0822338 .
time2013        371965.53 213458.55  1.7426 0.0820064 .
time2014        372764.83 213497.36  1.7460 0.0814085 .
time2015        373719.63 213517.09  1.7503 0.0806615 .
time2016        374587.80 213572.53  1.7539 0.0800401 .
time2017        375180.68 213606.53  1.7564 0.0796127 .
time2018        374569.33 213641.06  1.7533 0.0801515 .
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Diagnostics and fit:

                  Chi-sq df   p-value
Ljung-Box AR(1)   503.70  1 < 2.2e-16 ***
Ljung-Box ARCH(1) 429.87  1 < 2.2e-16 ***
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

SE of regression 10193.99274
R-squared            0.95699
Log-lik.(n=576)  -6103.03163

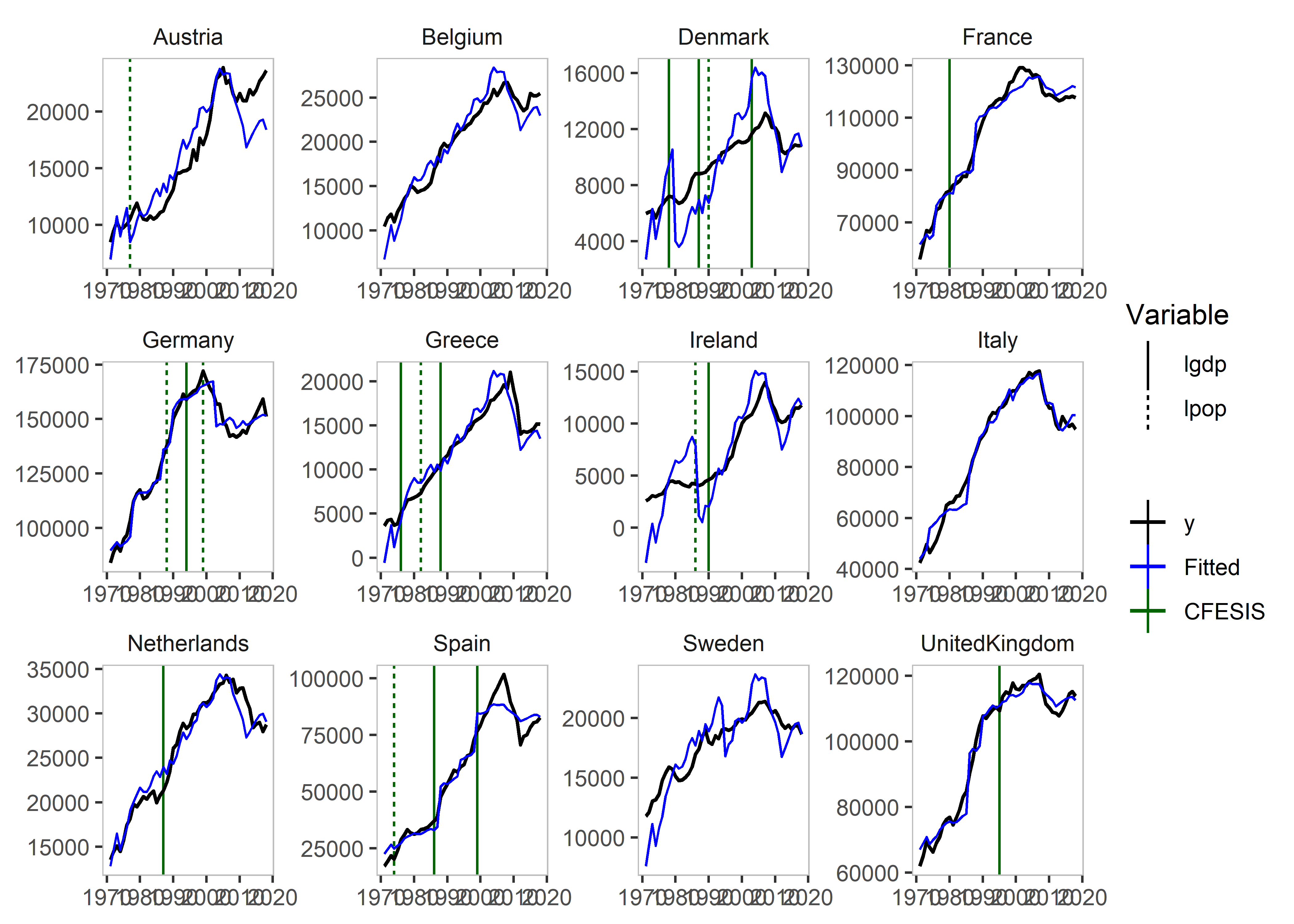

plot(is2)

plot_grid(is2)
Warning in plot_grid(is2): No indicators identified in the isatpanel object. No
plot produced.

and an example of Coefficient Fixed-Effect Step indicator saturation:

is3 <- isatpanel(data = EU_emissions_road,
                 formula = transport.emissions ~ lgdp + lpop,
                 index = c("country","year"),
                 effect = "twoways",
                 cfesis = TRUE,
                 print.searchinfo = FALSE # to save space we suppress the status information in the estimation
)
is3

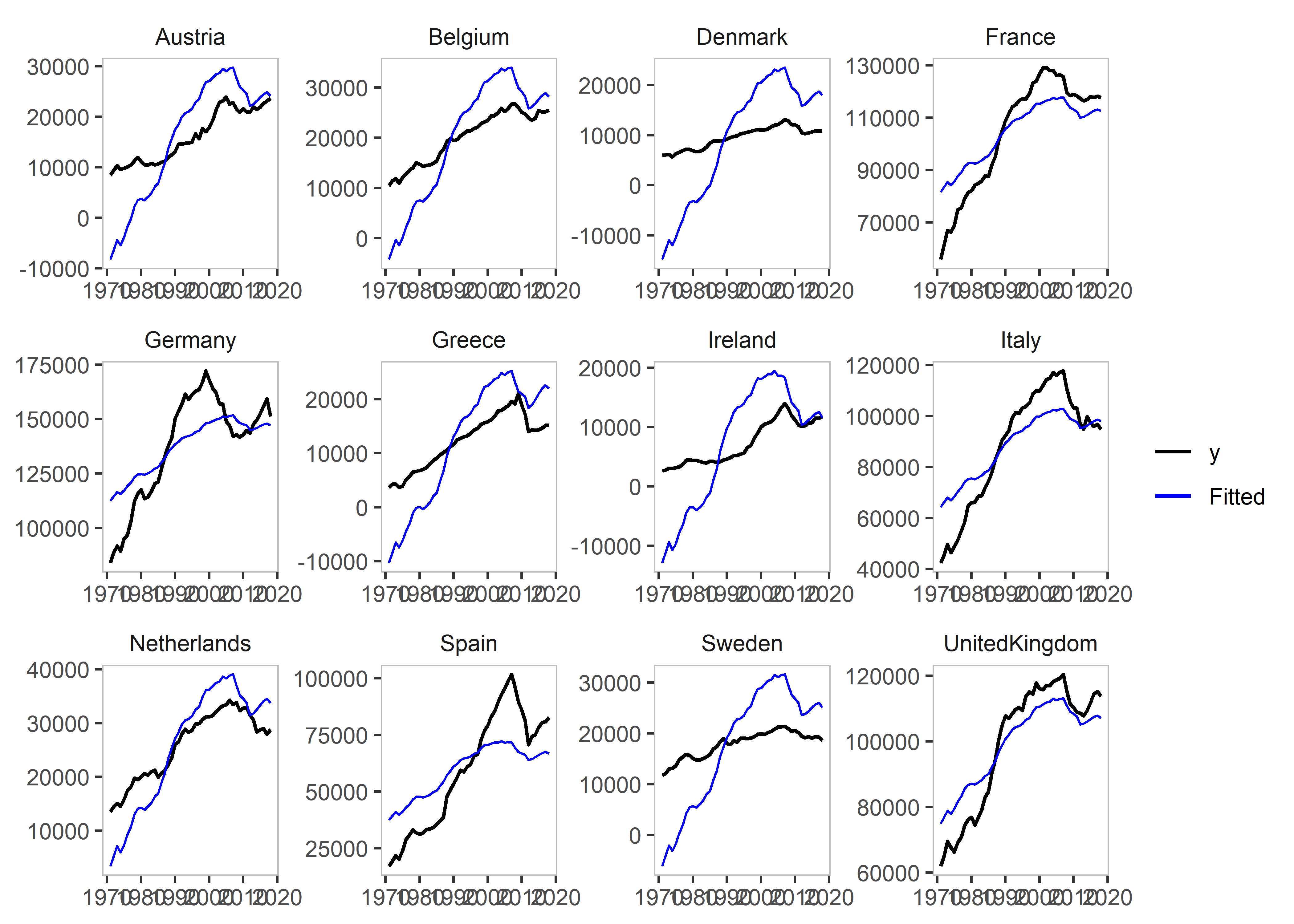

plot(is3)

We can also use e.g. the fixest package to estimate our models:

is4 <- isatpanel(data = EU_emissions_road,
                 formula = transport.emissions ~ lgdp + lpop,
                 index = c("country","year"),
                 effect = "twoways",
                 engine = "fixest",
                 fesis = TRUE,
                 print.searchinfo = FALSE # to save space we suppress the status information in the estimation
)
plot(is4)
