{CopernicusMarine} Easily access information from https://data.marine.copernicus.eu version cranlogs


CopernicusMarine logo

Copernicus Marine Service Information is a programme subsidised by the European Commission. Its mission is to provide free authoritative information on the oceans physical and biogeochemical state. The {CopernicusMarine} R package is developed apart from this programme and facilitates retrieval of information from https://data.marine.copernicus.eu. With the package you can:

Why use {CopernicusMarine}

Previously, there was only a MOTU client available for Python. Therefore, automating Copernicus downloads in R used to require installation of python and its motuclient package. The {CopernicusMarine} R package has a much simpler installation procedure (see below) and does not depend on third party software.


Get CRAN version


Get development version on github



The package provides an interface between R and the Copernicus Marine services. Note that for some of these services you need an account and have to comply with specific terms. The usage section briefly shows three different ways of obtaining data from Copernicus:

Please check the manual for complete documentation of the package.

Subsetting data using MOTU server

The code below assumes that you have registered your account details using option(CopernicusMarine_uid = "my_user_name") and option(CopernicusMarine_pwd = "my_password"). If you are comfortable that it is secure enough, you can also store these options in your .Rprofile such that they will be loaded each session. Otherwise, you can also provide your account details as arguments to the functions.

The example below demonstrates how to subset a specific layer for a specific product. The subset is constrained by the region, timerange, verticalrange and sub_variables arguments. The subset is downloaded to the temporary file specified with destination and can be read using the {stars} package.

destination <- tempfile("copernicus", fileext = ".nc")

  destination   = destination,
  product       = "GLOBAL_ANALYSISFORECAST_PHY_001_024",
  layer         = "cmems_mod_glo_phy-cur_anfc_0.083deg_P1D-m",
  variable      = "sea_water_velocity",
  output        = "netcdf",
  region        = c(-1, 50, 10, 55),
  timerange     = c("2021-01-01", "2021-01-02"),
  verticalrange = c(0, 2),
  sub_variables = c("uo", "vo")
#> Logging in onto MOTU server...
#> Preparing download...
#> Downloading file...
#> Done

mydata <- stars::read_stars(destination)
#> vo, uo,

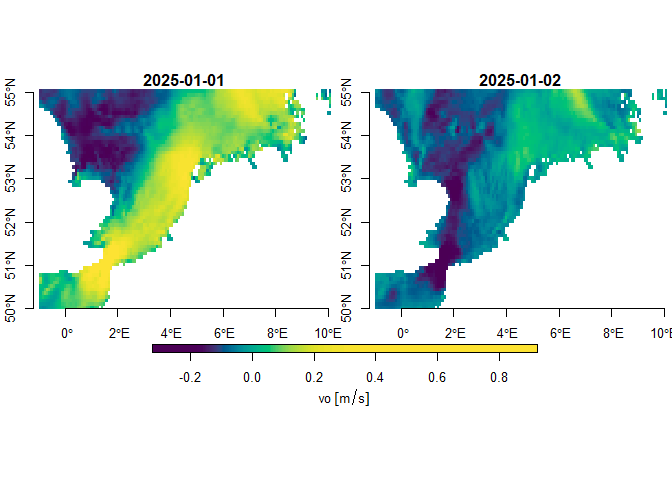

plot(mydata["vo"], col = hcl.colors(100), axes = TRUE)

Downloading a complete Copernicus marine product

If you don’t want to subset the data and want the complete set, you can use the File Transfer Protocol (FTP) if that service is available for your product. First you can list files available for a specific product:

cop_ftp_files <- copernicus_ftp_list("GLOBAL_ANALYSISFORECAST_PHY_001_024", "cmems_mod_glo_phy-cur_anfc_0.083deg_P1D-m")
#> # A tibble: 1,113 x 8
#>    flags        len protocol       size month   day time  url
#>    <chr>      <int> <chr>         <dbl> <chr> <int> <chr> <chr>
#>  1 -rw-rw-r--     1 ftp      1937968861 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  2 -rw-rw-r--     1 ftp      1937978851 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  3 -rw-rw-r--     1 ftp      1937888467 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  4 -rw-rw-r--     1 ftp      1938380754 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  5 -rw-rw-r--     1 ftp      1938177028 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  6 -rw-rw-r--     1 ftp      1938234339 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  7 -rw-rw-r--     1 ftp      1938285902 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  8 -rw-rw-r--     1 ftp      1937954892 Oct      14 2022  ftp://nrt.cmems-du.eu~
#>  9 -rw-rw-r--     1 ftp      1937964478 Oct      14 2022  ftp://nrt.cmems-du.eu~
#> 10 -rw-rw-r--     1 ftp      1937962443 Oct      14 2022  ftp://nrt.cmems-du.eu~
#> # i 1,103 more rows

Downloading the first file can be done with copernicus_ftp_get(cop_ftp_files$url[[1]], tempdir()), where the file would be stored in a temporary directory. By default the progress is printed as files can be very large and may take some time to download.

Copernicus Web Map Services (WMS)

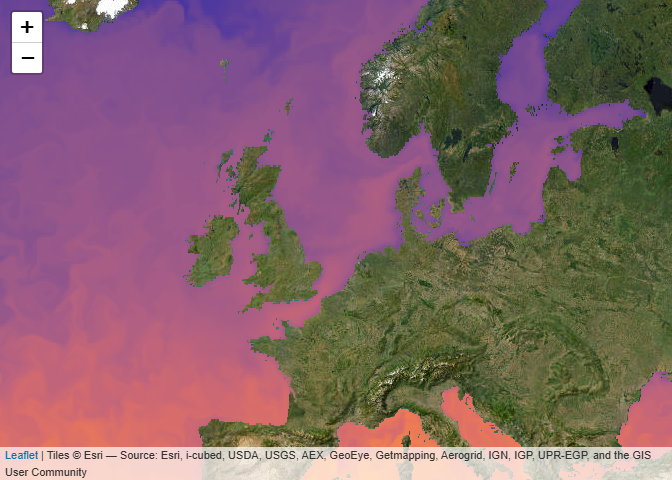

Web Map Services (WMS) allow to quickly plot pre-rendered images onto a map. This may not be useful when you need the data for analyses but is handy for quick visualisations, inspection or presentation of data. In R it is very easy to add WMS layers to an interactive map using leaflet widgets. This is demonstrated with the example below (note that in the documentation the map is only shown statically and is not interactive).

leaflet::leaflet() %>%
  leaflet::setView(lng = 3, lat = 54, zoom = 4) %>%
  leaflet::addProviderTiles("Esri.WorldImagery") %>%
    product     = "GLOBAL_ANALYSISFORECAST_PHY_001_024",
    layer       = "cmems_mod_glo_phy-thetao_anfc_0.083deg_P1D-m",
    variable    = "thetao"

When you want to use WMS tiles in static plots, you could download and store specific regions of the tiles as a geo-referenced tiff file for future use. Use copernicus_wms2geotiff for that purpose.

Note that the WMS functions may not work on systems that don’t support GDAL utils.

Citing the data you use

A Copernicus account comes with several terms of use. One of these is that you properly cite the data you use in publications. In fact, we also have credit the data used in this documentation, which can be easily done with the following code:

#> $doi
#> [1] "E.U. Copernicus Marine Service Information; Global Ocean Physics Analysis and Forecast - GLOBAL_ANALYSISFORECAST_PHY_001_024 (2016-10-14). DOI:10.48670/moi-00016"
